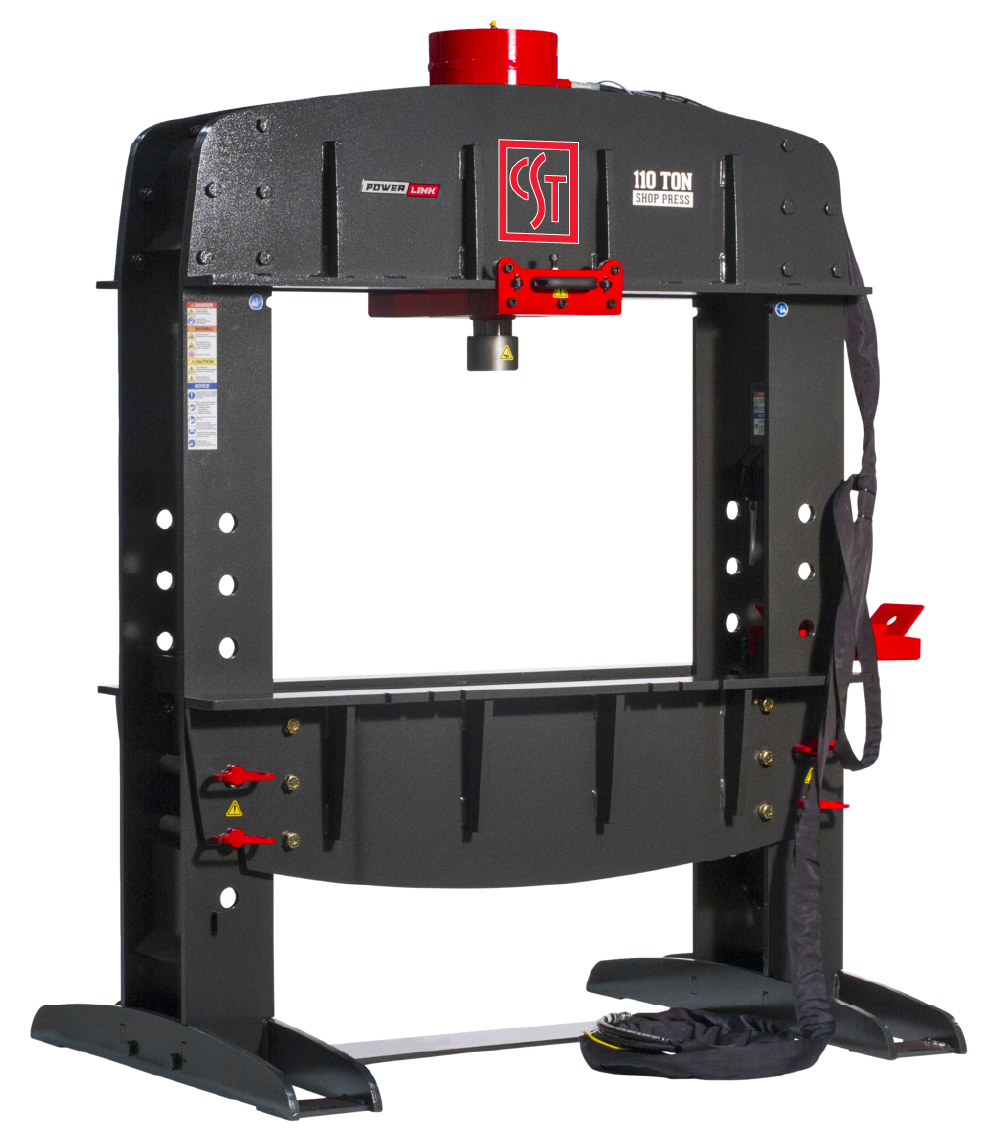

110 Ton Shop Press

Smooth & precise, heavy-duty and versatile

Our 110 Ton Shop Press solves a variety of demands to improve user’s productivity. Smooth & precise, heavy-duty and versatile, our unique, open side design allows for material to pass through. Power it up with an Cleveland Steel Tool Ironworker with factory installed PowerLink System or a Portable Power Unit.

With the Press Brake Tooling, your Shop Press easily becomes a brake. Check out our bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge.

Also available with PLC (Programmable Logic Control) to improve your productivity on repeatable actions. Provides adjustable up/down stroke control saving time. Adjustable PSI allows the user to set the pressure and cycle the press with an automatic return. Magnetic base allows easy mounting of the PLC anywhere on the machine.

Technical Specifications:

Heavy-Duty 3/4" Steel Construction
Easy-to-Use Foot/Jog Controls
Versatile Rolling Cylinder
Working Area of 48" x 37-1/2"
Pressure Gauge
Quick-Disconnect Hoses
Hydraulic-Assist Table Height Adjustment
2 V-Blocks Included

Specification Sheet

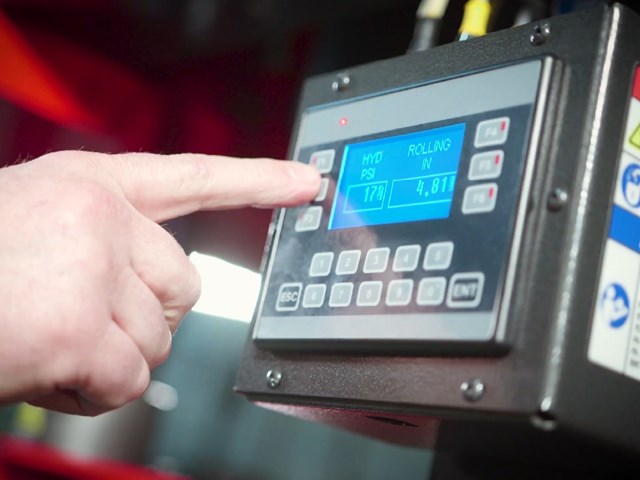

Programmable Logic Control

Programmable Logic Control (PLC) improves press accuracy with precision pressure and increased efficiency with automatic returns creating shorter cycle times. Up to 50% time savings. Set your pressure with adjustable PSI. The magnetic base allows for easy mounting of the PLC anywhere on the machine. A perfect fit for shops that produce repeatable pieces that cannot justify a fully automatic press brake.

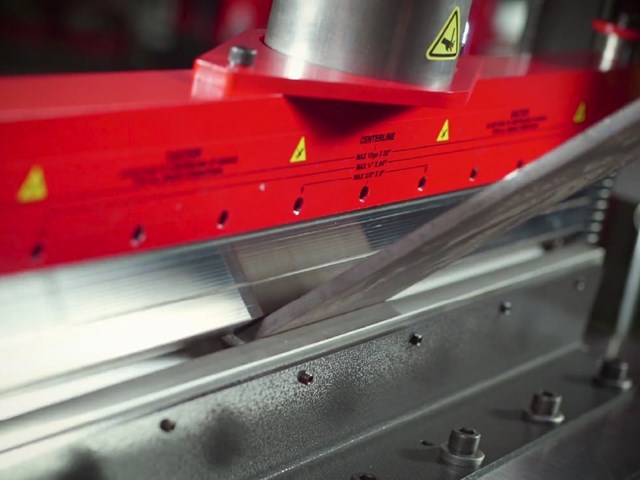

Press Brake Attachment

Make the most of your Shop Press by adding our versatile Brake Tooling. Mounted to a machined solid-steel base and pushblock, this robust tooling features heavy-duty return springs for smooth operation. Press Brake Tooling features our rugged, machined punch and 4-way die. Choose from a 12", 18", 24", or 32" length to accompany your Shop Press.

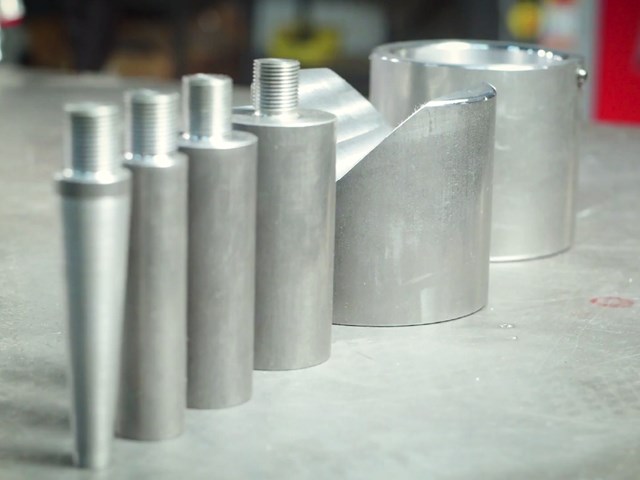

Press Brake Tooling Set

The six piece Press Tooling Set includes tapered and cutaway push blocks. Installs quickly and easily with a ball detent screw to our Shop Press. Whatever your specific task, there is a piece of tooling that will fit your needs.

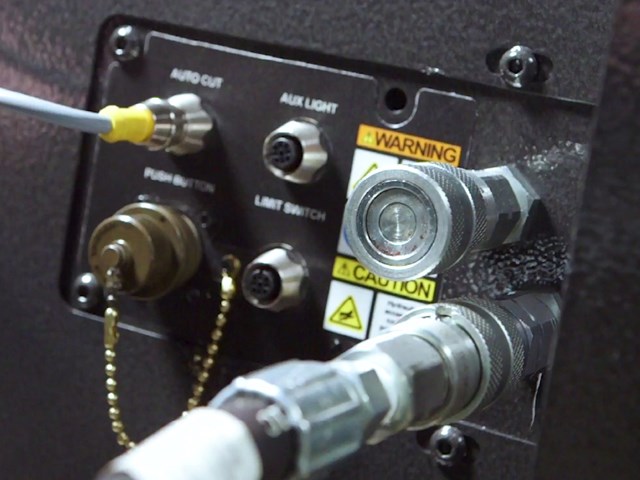

PowerLink Hydraulic Connection

Simply Plug In & Power Up your Shop Press into your Cleveland Steel Tool Ironworker or Portable Power Unit to expand your fabrication capabilities.

110 Ton Shop Press

Description	Part No.	Availability	Price
110 Ton Shop Press	HAT9000	2 Weeks	$18,589.00
110 Ton Shop Press with PLC	HAT9050	2 Weeks	$21,219.00
12" Press Brake	PRB12	5 days	$2,259.00
18" Press Brake	PRB18	5 days	$2,699.00
24" Press Brake	PRB24	5 days	$3,719.00
32" Press Brake	PRB32	5 days	$4,949.00
Press Brake Tooling Set - Six Piece	PRB06	Same Day	$789.00
Press Brake Back Gauge	PR135	5 days	$839.00
Porta Power Unit 1PH 230V	HAT001	2 Weeks	$5,259.00
Porta Power Unit 3PH 230V	HAT002	2 Weeks	$5,139.00
Porta Power Unit 3PH 460V	HAT004	2 Weeks	$5,259.00
