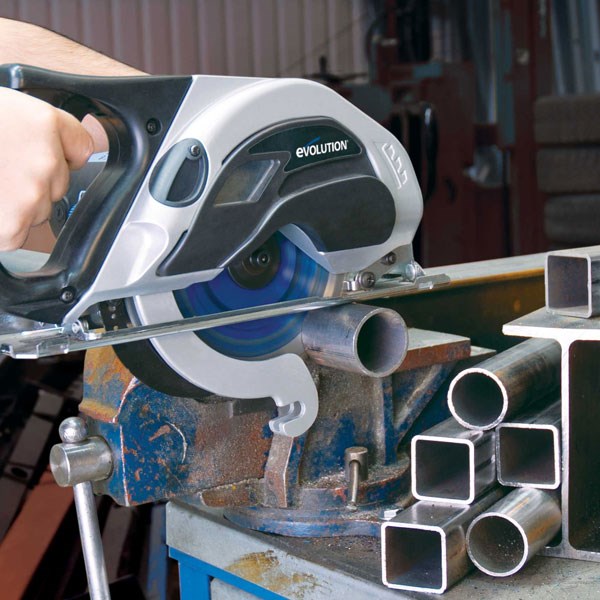

7-1/4" Steel Circular Saw

The 7-1/4" Steel Circular Saw is ideal for cutting steel plate, square tube, angle iron, pipe, and metal roofing. Cuts mild steel without excessive heat, burrs or coolant.

Ideal for cutting steel plate, square tube, angle iron, pipe, and metal roofing.

Powerful, durable and portable! Cuts up to 262 ft. of 1/4" steel plate before replacing the blade. 45^o bevel tilt enhances this saw's versatility. Includes 3 year warranty.

Technical Specifications

Motor (120v ~ 60Hz)	1110W
Amps	10
Horsepower	1.5
RPM (No Load)	3900
Recommended Maximum Duty Cycle	30 mins
Sound Pressure Level (Under Load)	98.5dB(A)
Vibration Level (Under Load)	2.3 m/s²
Maximum Thickness of Cut	5/16"
Maximum Cutting Depth 90⁰	2-1/4"
Maximum Cutting Depth at 45⁰	1-3/8"
Tool Weight	13 lbs
Total Dimensions	9-3/8" H x 16-15/16" W x 10-3/8" L
Shipping Weight	25 lbs
Shipping Dimensions	16" H x 12" W x 22" L

7-1/4" Steel Circular Saw Specification Sheet

Special Features

Rated for heavy duty and industrial applications with chip collection capability
Cuts mild steel without excessive heat, burrs or the necessity of coolant
With supplied mild steel blade maximum capacity is 5/16" plate with quick, clean cuts
High quality construction designed for portability
Advanced technology out-performs angle grinders
When cutting steel, the material has a workable finish

Virtually no heat, burrs or sparks are crated, unlike inherently dangerous angle grinders
0-45⁰ bevel tilt for enhanced versatility
Adjustable depth of cut
Heavy duty and portable. Supplied with: Carrying Case, 7-1/4" mild steel blade, side handle, spare carbon brush set, wrench, fence guide, safety goggles, ear plugs & manual
Available Steel Blades: Mild Steel (included), Thin Steel, Stainless Steel, Aluminum. Blades for cutting other materials are also available
CSA Approved

7-1/4" Steel Circular Saw

7-1/4" Steel Circular Saw

Image	Description	Part No.	Availability	Price	Quantity	Purchase
	Circular Saw 7-1/4"	STEELSAW1	Same Day	$226.00
