H2 Die

H2

Specifications

Outside Diameter2"
Height1"

Equivalent Part Numbers

CPDH-2
APC317M H2
PW0

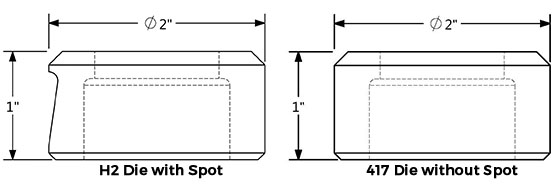

Our 417 is the same as the H2 but does not have a spot. If a spot is required, order the H2D and fill in the size accordingly.

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price
41705	5/32 (0.156)"	417 Round Die 5/32	None	Same Day	$18.25
41706	3/16 (0.188)"	417 Round Die 3/16	None	Same Day	$18.25
41707	7/32 (0.219)"	417 Round Die 7/32	None	Same Day	$18.25
41708	1/4 (0.250)"	417 Round Die 1/4	None	Same Day	$18.25
41709	9/32 (0.281)"	417 Round Die 9/32	None	Same Day	$18.25
41710	5/16 (0.313)"	417 Round Die 5/16	None	Same Day	$18.25
41711	11/32 (0.344)"	417 Round Die 11/32	None	Same Day	$18.25
41712	3/8 (0.375)"	417 Round Die 3/8	None	Same Day	$18.25
41713	13/32 (0.406)"	417 Round Die 13/32	None	Same Day	$18.25
41714	7/16 (0.438)"	417 Round Die 7/16	None	Same Day	$18.25
41715	15/32 (0.469)"	417 Round Die 15/32	None	Same Day	$18.25
41716	1/2 (0.500)"	417 Round Die 1/2	None	Same Day	$18.25
41717	17/32 (0.531)"	417 Round Die 17/32	None	Same Day	$18.25
41718	9/16 (0.563)"	417 Round Die 9/16	None	Same Day	$18.25
41719	19/32 (0.594)"	417 Round Die 19/32	None	Same Day	$18.25
41720	5/8 (0.625)"	417 Round Die 5/8	None	Same Day	$18.25
41721	21/32 (0.656)"	417 Round Die 21/32	None	Same Day	$18.25
41722	11/16 (0.688)"	417 Round Die 11/16	None	Same Day	$18.25
41723	23/32 (0.719)"	417 Round Die 23/32	None	Same Day	$18.25
41724	3/4 (0.750)"	417 Round Die 3/4	None	Same Day	$18.25
41725	25/32 (0.781)"	417 Round Die 25/32	None	Same Day	$18.25
41726	13/16 (0.813)"	417 Round Die 13/16	None	Same Day	$18.25
41727	27/32 (0.844)"	417 Round Die 27/32	None	Same Day	$18.25
41728	7/8 (0.875)"	417 Round Die 7/8	None	Same Day	$18.25
41729	29/32 (0.906)"	417 Round Die 29/32	None	Same Day	$18.25
41730	15/16 (0.938)"	417 Round Die 15/16	None	Same Day	$18.25
41731	31/32 (0.969)"	417 Round Die 31/32	None	Same Day	$18.25
41732	1 (1.000)"	417 Round Die 1"	None	Same Day	$18.25
41733	1-1/32 (1.031)"	417 Round Die 1-1/32	None	Same Day	$18.25
41734	1-1/16 (1.063)"	417 Round Die 1-1/16	None	Same Day	$18.25
41735	1-3/32 (1.094)"	417 Round Die 1-3/32	None	Same Day	$18.25
41736	1-1/8 (1.125)"	417 Round Die 1-1/8	None	Same Day	$18.25
41737	1-5/32 (1.156)"	417 Round Die 1-5/32	None	Same Day	$18.25
41738	1-3/16 (1.188)"	417 Round Die 1-3/16	None	Same Day	$18.25
41739	1-7/32 (1.219)"	417 Round Die 1-7/32	None	Same Day	$18.25
41740	1-1/4 (1.250)"	417 Round Die 1-1/4	None	Same Day	$18.25
41741	1-9/32 (1.281)"	417 Round Die 1-9/32	None	Same Day	$18.25
41742	1-5/16 (1.313)"	417 Round Die 1-5/16	None	Same Day	$18.25
41744	1-3/8 (1.375)"	417 Round Die 1-3/8	None	Same Day	$18.25
H2DRD		H2 Round Die With 1 Whistle Spot	1 Whistle	24 hours	$33.55
417RD		417 Round Die in any size not shown (without whistle spot)	None	24 hours	$33.55

Part No.	Size	Description	Locating Spot	Availability	Price
41790815	1/4 x 15/32 (0.250 x 0.469)"	417 Oblong Die 1/4 x 15/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41790933	9/32 x 1-1/32 (0.281 x 1.031)"	417 Oblong Die 9/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791019	5/16 x 19/32 (0.313 x 0.594)"	417 Oblong Die 5/16 x 19/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791025	5/16 x 25/32 (0.313 x 0.781)"	417 Oblong Die 5/16 x 25/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791033	5/16 x 1-1/32 (0.313 x 1.031)"	417 Oblong Die 5/16 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791117	11/32 x 17/32 (0.344 x 0.531)"	417 Oblong Die 11/32 x 17/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791125	11/32 x 2532 (0.344 x 0.781)"	417 Oblong Die 11/32 x 25/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791133	11/32 x 1-1/32 (0.344 x 1.031)"	417 Oblong Die 11/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791223	3/8 x 23/32 (0.375 x 0.719)"	417 Oblong Die 3/8 x 23/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791325	13/32 x 25/32 (0.406 x 0.781)"	417 Oblong Die 13/32 x 25/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791333	13/32 x 1-1/32 (0.406 x 1.031)"	417 Oblong Die 13/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791341	13/32 x 1-9/32 (0.406 x 1.281)"	417 Oblong Die 13/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791433	7/16 x 1-1/32 (0.438 x 1.031)"	417 Oblong Die 7/16 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791525	15/32 x 25/32 (0.469 x 1.781)"	417 Oblong Die 15/32 x 25/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791529	15/32 x 29/32 (0.469 x 1.906)"	417 Oblong Die 15/32 x 29/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791533	15/32 x 1-1/32 (0.469 x 1.031)"	417 Oblong Die 15/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791535	15/32 x 1-3/32 (0.469 x 1.094)"	417 Oblong Die 15/32 x 1-3/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791541	15/32 x 1-9/32 (0.469 x 1.281)"	417 Oblong Die 15/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791725	17/32 x 25/32 (0.531 x 0.781)"	417 Oblong Die 17/32 x 25/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791733	17/32 x 1-1/32 (0.531 x 1.031)"	417 Oblong Die 17/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791741	17/32 x 1-9/32 (0.531 x 1.281)"	417 Oblong Die 17/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791833	9/16 x 1-1/32 (0.563 x 1.031)"	417 Oblong Die 9/16 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791925	19/32 x 25/32 (0.594 x 0.781)"	417 Oblong Die 19/32 x 25/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791933	19/32 x 1-1/32 (0.594 x 1.031)"	417 Oblong Die 19/32 X 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41791941	19/32 x 1-9/32 (0.594 x 1.281)"	417 Oblong Die 19/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792034	5/8 x 1-1/16 (0.625 x 1.063)"	417 Oblong Die 5/8 x 1-1/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792042	5/8 x 1-5/16 (0.625 x 1.313)"	417 Oblong Die 5/8 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792133	21/32 x 1-1/32 (0.656 x 1.031)"	417 Oblong Die 21/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792141	21/32 x 1-9/32 (0.656 x 1.281)"	417 Oblong Die 21/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792234	11/16 x 1-1/16 (0.688 x 1.063)"	417 Oblong Die 11/16 x 1-1/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792242	11/16 x 1-5/16 (0.688 x 1.312)"	417 Oblong Die 11/16 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792333	23/32 X 1-1/32 (0.719 x 1.031)"	417 Oblong Die 23/32 X 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792341	23/32 x 1-9/32 (0.719 x 1.281)"	417 Oblong Die 23/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792434	3/4 x 1-1/16 (0.750 x 1.063)"	417 Oblong Die 3/4 x 1-1/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792436	3/4 x 1-1/8 (0.750 x 1.125)"	417 Oblong Die 3/4 x 1-1/8 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792442	3/4 x 1-5/16 (0.750 x 1.313)"	417 Oblong Die 3/4 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792541	25/32 x 1-9/32 (0.781 x 1.281)"	417 Oblong Die 25/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792634	13/16 x 1-1/16 (0.813 x 1.063)"	417 Oblong Die 13/16 x 1-1/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792733	27/32 X 1-1/32 (0.844 x 1.031)"	417 Oblong Die 27/32 X 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792735	27/32 x 1-3/32 (0.844 x 1.094)"	417 Oblong Die 27/32 x 1-3/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792741	27/32 x 1-9/32 (0.844 x 1.281)"	417 Oblong Die 27/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792834	7/8 x 1-1/16 (0.875 x 1.063)"	417 Oblong Die 7/8 x 1-1/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792836	7/8 x 1-1/8 (0.875 x 1.125)"	417 Oblong Die 7/8 x 1-1/8 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792842	7/8 x 1-5/16 (0.875 x 1.313)"	417 Oblong Die 7/8 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41792941	29/32 x 1-9/32 (0.906 x 1.281)"	417 Oblong Die 29/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41793042	15/16 x 1-5/16 (0.938 x 1.313)"	417 Oblong Die 15/16 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41793141	31/32 x 1-9/32 (.969 x 1.281)"	417 Oblong Die 31/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$75.70
41793242	1 x 1-5/16 (1.000 x 1.313)"	417 Oblong Die 1" x 1-5/16" With 2 Whistle Spots	2 Whistles	Same Day	$75.70
H2DOB		H2 Oblong Die With 2 Whistle Spots in Any size not shown	2 Whistles	24 hours	$95.60

Part No.	Size	Description	Locating Spot	Availability	Price
417809	9/32 (0.281)"	417 Square Die 9/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417811	11/32 (0.344)"	417 Square Die 11/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417813	13/32 (0.406)"	417 Square Die 13/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417814	7/16 (0.438)"	417 Square Die 7/16 1 Whistle Spot	1 Whistle	Same Day	$75.70
417815	15/32 (0.469)"	417 Square Die 15/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417817	17/32 (0.531)"	417 Square Die 17/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417818	9/16 (0.563)"	417 Square Die 9/16 1 Whistle Spot	1 Whistle	Same Day	$75.70
417819	19/32 (0.594)"	417 Square Die 19/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417820	5/8 (0.625)"	417 Square Die 5/8 1 Whistle Spot	1 Whistle	Same Day	$75.70
417821	21/32 (0.656)"	417 Square Die 21/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417822	11/16 (0.688)"	417 Square Die 11/16 1 Whistle Spot	1 Whistle	Same Day	$75.70
417823	23/32 (0.719)"	417 Square Die 23/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417825	25/32 (0.781)"	417 Square Die 25/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417826	13/16 (0.813)"	417 Square Die 13/16 1 Whistle Spot	1 Whistle	Same Day	$75.70
417827	27/32 (0.844)"	417 Square Die 27/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
417829	29/32 (.906)"	417 Square Die 29/32 1 Whistle Spot	1 Whistle	Same Day	$75.70
H2DSQ		H2 Square Die With 1 Whistle Spot in Any size not shown	1 Whistle	24 hours	$95.60

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
H2DHX		H2 Hex Die With 1 Whistle Spot in Any size not shown	1 Whistle	24 hours	$95.60

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
H2DRC		H2 Rectangle Die With 2 Whistle Spots in Any size not shown	2 Whistles	24 hours	$95.60
