417-Offset Die

417-Offset

Specifications

Outside Diameter2"
Height1"

Equivalent Part Numbers

CPDF-59
APC317
PWJC

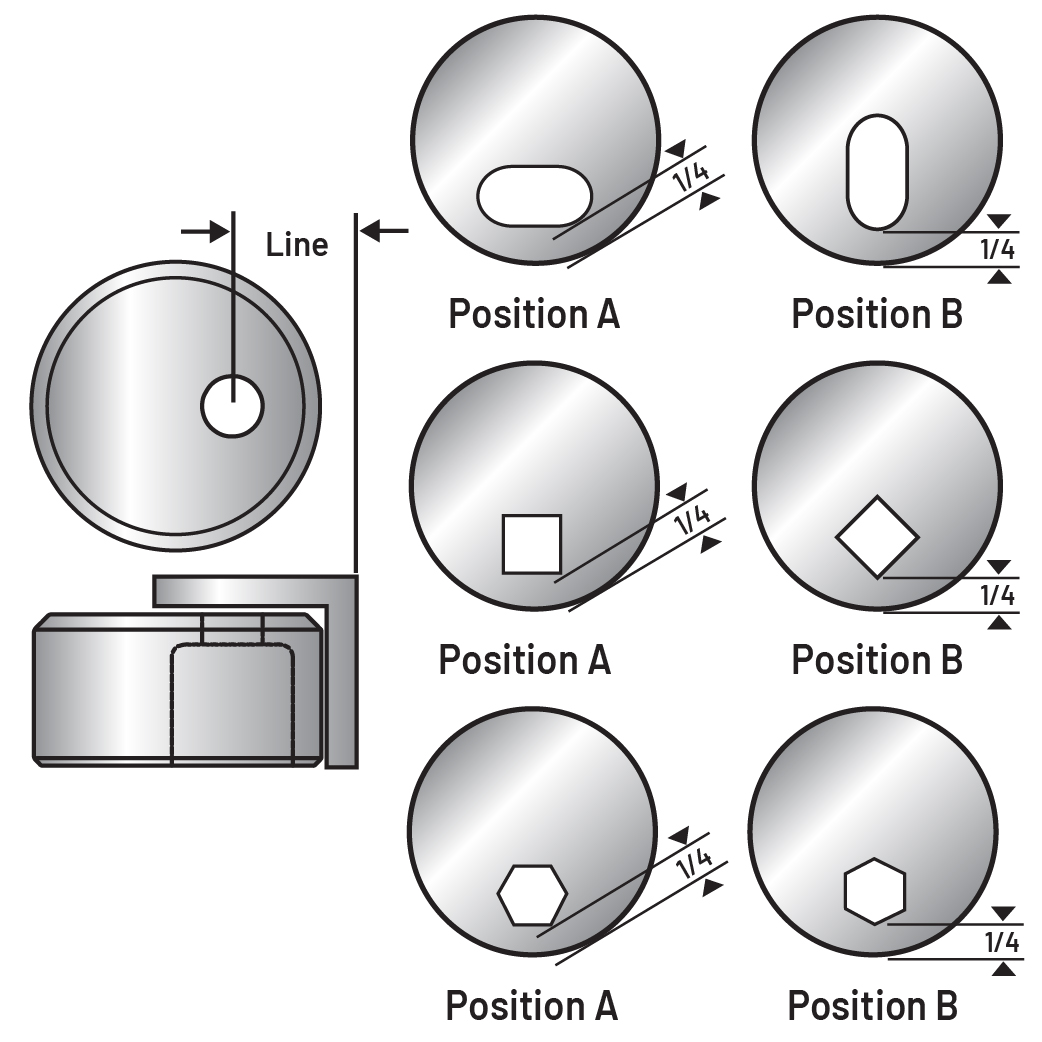

Using a Die with an Offset Hole allows the hole to be punched closer to a desired gauge line. A minimum 1/4" wall thickness is required.

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
C4978		417 Offset Round Die	1 Whistle	24 hours	$58.85

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
17320		417 Offset Oblong Die Position A	1 Whistle	24 hours	$122.90
17585		417 Offset Oblong Die Position B	1 Whistle	24 hours	$122.90

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
C9087		417 Offset Square Die Position A	1 Whistle	24 hours	$122.90
C15999		417 Offset Square Die Position B (Diamond)	1 Whistle	24 hours	$122.90

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
C16008		417 Offset Hex Die Position A	1 Whistle	24 hours	$137.70
C16009		417 Offset Hex Die Position B	1 Whistle	24 hours	$137.70

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
C11463		417 Offset Rectangle Die Position A	1 Whistle	24 hours	$137.70
C8334		417 Offset Rectangle Die Position B	1 Whistle	24 hours	$137.70
