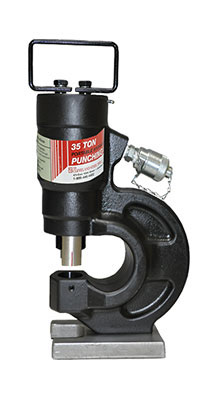

Cleveland Steel Tool 35 Ton Porta Punch with Base Plate

Standard Punches & Dies

Huspch

Specifications

  • Head Diameter.624"
  • Body Diameter1.172"
  • Overall Length1.562"

Equivalent Part Numbers

  • CPDF-5
  • APC105

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No. Size Keyway Description Availability Price Quantity Purchase
HUSPCH08 1/4 (0.250)" None 1/4 RD HUSKIE Punch Same Day $33.80
HUSPCH10 5/16 (0.313)" None 5/16 RD HUSKIE Punch Same Day $33.80
HUSPCH12 3/8 (0.375)" None 3/8 RD HUSKIE Punch Same Day $33.80
HUSPCH14 7/16 (0.438)" None 7/16 RD HUSKIE Punch Same Day $33.80
HUSPCH16 1/2 (0.500)" None 1/2 RD HUSKIE Punch Same Day $33.80
HUSPCH17 17/32 (0.531)" None 17/32 RD HUSKIE Punch Same Day $33.80
HUSPCH18 9/16 (0.563)" None 9/16 RD HUSKIE Punch Same Day $33.80
HUSPCH20 5/8 (0.625)" None 5/8 RD HUSKIE Punch Same Day $33.80
HUSPCH22 11/16 (0.688)" None 11/16 RD HUSKIE Punch Same Day $33.80
HUSPCH24 3/4 (0.750)" None 3/4 RD HUSKIE Punch Same Day $33.80
HUSPCH25 25/32 (0.781)" None 25/32 RD HUSKIE Punch Same Day $33.80
HUSPCH26 13/16 (0.813)" None 13/16 RD HUSKIE Punch Same Day $33.80
HUSPCH28 7/8 (0.875)" None 7/8 RD HUSKIE Punch Same Day $33.80
HUSPCH660 .660 (0.660)" None .660 RD HUSKIE Punch Same Day $33.80
HUPRD None HUP Round Punch Any size not shown 24 hours $47.10
Part No. Size Keyway Description Availability Price Quantity Purchase
HUPOB HUP Oblong Punch Any size not shown 24 hours $63.65
Part No. Size Keyway Description Availability Price Quantity Purchase
HUPSQ HUP Square Punch Any size not shown 24 hours $63.65
Part No. Size Keyway Description Availability Price Quantity Purchase
HUPHX HUP Hex Punch Any size not shown 24 hours $63.65
Part No. Size Keyway Description Availability Price Quantity Purchase
HUPRC HUP Rectangle Punch Any size not shown 24 hours $63.65

Husdie

Specifications

  • Outside Diameter1.336"
  • Height.750"

Equivalent Part Numbers

  • CPDF-44
  • APC244
  • PW0

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
HUSDIE08 1/4 (0.250)" 1/4 (.250) RD HUSKIE Die None Same Day $36.50
HUSDIE10 5/16 (0.375)" 5/16 (.375) RD HUSKIE Die None Same Day $36.50
HUSDIE12 3/8 (0.437)" 3/8 (.437) RD HUSKIE Die None Same Day $36.50
HUSDIE14 7/16 (0.500)" 7/16 (.500) RD HUSKIE Die None Same Day $36.50
HUSDIE16 1/2 (0.562)" 1/2 (.562) RD HUSKIE Die None Same Day $36.50
HUSDIE17 17/32 (.593)" 17/32 (.593) RD HUSKIE Die None Same Day $36.50
HUSDIE18 9/16 (.625)" 9/16 (.625) RD HUSKIE Die None Same Day $36.50
HUSDIE20 5/8 (.687)" 5/8 (.687) RD HUSKIE Die None Same Day $36.50
HUSDIE22 11/16 (.750)" 11/16 (.750) RD HUSKIE Die None Same Day $36.50
HUSDIE24 3/4 (.812)" 3/4 (.812) RD HUSKIE Die None Same Day $36.50
HUSDIE25 25/32 (.843)" 25/32 (.843) RD HUSKIE Die None Same Day $36.50
HUSDIE26 13/16 (.875)" 13/16 (.875) RD HUSKIE Die None Same Day $36.50
HUSDIE28 7/8 (.937)" 7/8 (.937) RD HUSKIE Die None Same Day $36.50
HUSDIE660 .660 (.722)" .660 (.722) RD HUSDie None Same Day $36.50
HUSDIE912 13/16 (.912)" 13/16 (.912) RD HUSKIE Die None Same Day $36.50
HUDRD HUD Round Die in Any size not shown None 24 hours $49.80
Part No. Size Description Locating Spot Availability Price Quantity Purchase
HUDOB HUD Oblong Die in Any size not shown None 24 hours $67.65
Part No. Size Description Locating Spot Availability Price Quantity Purchase
HUDSQ HUD Square Die in Any size not shown None 24 hours $67.65
Part No. Size Description Locating Spot Availability Price Quantity Purchase
HUDHX HUD Hex Die in Any size not shown None 24 hours $67.65
Part No. Size Description Locating Spot Availability Price Quantity Purchase
HUDRC HUD Rectangle Die in Any size not shown None 24 hours $67.65

Parts & Accessories

Misc Accessories and Parts

Image Part No. Description Availability Price Quantity Purchase
250494 #1 Handle for Base Plate C-Frame Same Day $99.00
250502 #3 Main Piston for Base Plate C-Frame Same Day $454.85
250513 #5 Cotter Pin for Base Plate C-Frame Same Day $1.30
250514 #8 Set Screw for Base Plate C-Frame Same Day $1.60
270-09 #9 Base/Mounting Plate for Base Plate C-Frame Same Day $170.90
270-10 #10 Screw for Base Plate C-Frame (2 req. price each) Same Day $2.25
250495 #11 Hex Bolt for Base Plate C-Frame (2 req. price each) Same Day $3.15
250496 #12 Lock Washer for Base Plate C-Frame (2 req. price each) Same Day $0.55
250497 #13 Spacer for Base Plate C-Frame (2 req. price each) Same Day $16.30
270-14 #14 Sealed End Cap for Base Plate C-Frame Same Day $311.85
250500 #15 Back Up Ring for Base Plate C-Frame (2 req. price each) Same Day $17.00
250501 #16 Sealing O-Ring for Base Plate C-Frame Same Day $5.50
250505 #17 Upper Spring for Base Plate C-Frame Same Day $173.00
250507 #18 Lower Spring for Base Plate C-Frame Same Day $156.45
250506 #19 Lower Spring Retainer for Base Plate C-Frame Same Day $57.30
250508 #20 Stripper for Base Plate C-Frame Same Day $183.50
250509 #21 Stopper Nut for Base Plate C-Frame Same Day $47.45
250510 #22 Punch Centering O-Ring for Base Plate C-Frame Same Day $1.60
250511 #23 Locking Collar for Base Plate C-Frame Same Day $56.85
250522 #26 Ram Key Set Screw for Base Plate C-Frame Same Day $16.20
270-28 #28 O-Ring for Base Plate C-Frame Same Day $8.25
256000 #29 Coupler for Base Plate C-Frame Same Day $42.35
250519 #30 Locking Collar Tool Same Day $49.80
250520 #31 Hex Key Wrench 2.5 mm for Bracket Type C-Frame Same Day $1.20
250521 #32 Hex Key Wrench 4 mm for Bracket Type C-Frame Same Day $1.60
VHP-10-43 Hand Pump 10,000 psi Same Day $520.00
S30-3P Quick Disconnect Same Day $45.00
