W.A. Whitney 609

Standard Punches & Dies

Shoulder size is determined by the hole size being punched, from 1" to 5".

Part No.	Size	Keyway	Description	Availability	Price
P28X06	3/16 (0.188)"	N/A	3/16 RD 28XX PCH	Same Day	$20.30
P28X08	1/4 (0.250)"	N/A	1/4 RD 28XX PCH	Same Day	$20.30
P28X10	5/16 (0.313)"	N/A	5/16 RD 28XX PCH	Same Day	$20.30
P28X12	3/8 (0.375)"	N/A	3/8 RD 28XX PCH	Same Day	$20.30
P28X13	13/32 (0.406)"	N/A	13/32 RD 28XX PCH	Same Day	$20.30
P28X14	7/16 (0.438)"	N/A	7/16 RD 28XX PCH	Same Day	$20.30
P28X15	15/32 (0.469)"	N/A	15/32 RD 28XX PCH	Same Day	$20.30
P28X16	1/2 (0.500)"	N/A	1/2 RD 28XX PCH	Same Day	$20.30
P28X17	17/32 (0.531)"	N/A	17/32 RD 28XX PCH	Same Day	$20.30
P28X18	9/16 (0.563)"	N/A	9/16 RD 28XX PCH	Same Day	$20.30
P28X20	5/8 (0.625)"	N/A	5/8 RD 28XX PCH	Same Day	$20.30
P28X22	11/16 (0.688)"	N/A	11/16 RD 28XX PCH	Same Day	$20.30
P28X24	3/4 (0.750)"	N/A	3/4 RD 28XX PCH	Same Day	$20.30
P28X26	13/16 (0.813)"	N/A	13/16 RD 28XX PCH	Same Day	$20.30
P28X28	7/8 (0.875)"	N/A	7/8 RD 28XX PCH	Same Day	$20.30
P28X30	15/16 (0.938)"	N/A	15/16 RD 28XX PCH	Same Day	$20.30
P28X32	1" (1.000)"	N/A	1" RD 28XX PCH	Same Day	$20.30
P28XRD		N/A	28XX Round Punch Any size not shown	24 hours	$33.60
P28XRD1-1/2		N/A	28XX RD PCH 1-1/2 SHLDR	24 hours	$51.10
P28XRD2		N/A	28XX RD PCH 2" SHLDR	24 hours	$71.40
P28XRD2-1/2		N/A	28XX RD PCH 2-1/2 SHLDR	24 hours	$86.60
P28XRD3		N/A	28XX RD PCH 3" SHOULDER	24 hours	$108.10
P28XRD3-1/2		N/A	28XX RD PCH 3-1/2 SHLDR	24 hours	$135.25
P28XRD4		N/A	28XX ROUND Punch 4" SHOULDER	24 hours	$148.70
P28XRD4-1/2		N/A	28XX ROUND Punch 4-1/2 SHOULDER	24 hours	$250.10
P28XRD5		N/A	28XX ROUND Punch 5" SHOULDER	24 hours	$290.70

Part No.	Keyway	Description	Availability	Price
P28XOB	N/A	28XX Oblong Punch Any size not shown	24 hours	$81.15
P28XOB1-1/2	N/A	28XX Oblong Punch 1-1/2 SHOULDER	24 hours	$108.10
P28XOB2	N/A	28XX Oblong Punch 2" SHLDR	24 hours	$121.70
P28XOB2-1/2	N/A	28XX Oblong Punch 2-1/2 SHLDR	24 hours	$148.70
P28XOB3	N/A	28XX Oblong Punch 3" SHLDR	24 hours	$175.75
P28XOB3-1/2	N/A	28XX Oblong Punch 3-1/2 SHOULDER	24 hours	$216.35
P28XOB4	N/A	28XX Oblong Punch 4" SHOULDER	24 hours	$284.00
P28XOB4-1/2	N/A	28XX Oblong Punch 4-1/2 SHOULDER	24 hours	$419.20
P28XOB5	N/A	28XX Oblong Punch 5" SHOULDER	24 hours	$439.50

Part No.	Keyway	Description	Availability	Price
P28XSQ	N/A	28XX Square Punch Any size not shown	24 hours	$81.15
P28XSQ1-1/2	N/A	28XX SQ PCH 1-1/2 SHLDR	24 hours	$108.10
P28XSQ2	N/A	28XX Square Punch 2" SHOULDER	24 hours	$121.70
P28XSQ2-1/2	N/A	28XX SQ PCH 2-1/2" SHLDR	24 hours	$148.70
P28XSQ3	N/A	28XX SQ PCH 3" SHLDR	24 hours	$175.75
P28XSQ3-1/2	N/A	28XX SQ PCH 3-1/2 SHLDR	24 hours	$216.35
P28XSQ4	N/A	28XX Square Punch 4" SHOULDER	24 hours	$284.00
P28XSQ4-1/2	N/A	28XX Square Punch 4-1/2 SHOULDER	24 hours	$419.20
P28XSQ5	N/A	28XX Square Punch 5" SHOULDER	24 hours	$439.50

Part No.	Keyway	Description	Availability	Price
P28XHX	N/A	28XX Hex Punch Any size not shown	24 hours	$81.15
P28XHX1-1/2	N/A	28XX HEX Punch 1-1/2 SHOULDER	24 hours	$108.10
P28XHX2	N/A	28XX HEX Punch 2" SHOULDER	24 hours	$121.70

Part No.	Keyway	Description	Availability	Price
P28XRC	N/A	28XX Rectangle Punch Any size not shown	24 hours	$81.15
P28XRC1-1/2	N/A	28XX RC PCH 1-1/2 SHLDR	24 hours	$108.10
P28XRC2	N/A	28XX RECT PCH 2" SHOULDER	24 hours	$121.70
P28XRC2-1/2	N/A	28XX RECTANGLE Punch 2-1/2 SHOULDER	24 hours	$148.70
P28XRC3	N/A	28XX RECTANGLE Punch 3" SHOULDER	24 hours	$175.75
P28XRC3-1/2	N/A	28XX RECTANGLE Punch 3-1/2 SHOULDER	24 hours	$216.35
P28XRC4	N/A	28XX RECTANGLE Punch 4" SHOULDER	24 hours	$284.00
P28XRC4-1/2	N/A	28XX RECTANGLE Punch 4-1/2 SHOULDER	24 hours	$419.20
P28XRC5	N/A	28XX RECTANGLE Punch 5" SHOULDER	24 hours	$439.50

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Part No.	Description	Locating Spot	Availability	Price
D28XRD1-1/4	28XX RD Die 1-1/4OD	1 Whistle	24 hours	$27.15
D28XRD2-1/8	28XX ROUND Die 2-1/8OD	1 Whistle	24 hours	$36.20
D28XRD2-3/4	28XX ROUND Die 2-3/4OD	1 Whistle	24 hours	$58.15
D28XRD3-3/4	28XX RD Die 3-3/4OD	1 Whistle	24 hours	$89.25
D28XRD4-3/4	28XX RD Die 4-3/4OD	1 Whistle	24 hours	$121.70
D28XRD5-3/4	28XX ROUND Die 5-3/4OD	1 Whistle	5 days	$284.00

Part No.	Description	Locating Spot	Availability	Price
D28XOB1-1/4	28XX OB Die 1-1/4OD	2 Whistles	24 hours	$70.40
D28XOB2-1/8	28XX OB Die 2-1/8OD	2 Whistles	24 hours	$82.40
D28XOB2-3/4	28XX OB Die 2-3/4OD	2 Whistles	24 hours	$128.50
D28XOB3-3/4	28XX OB Die 3-3/4OD	2 Whistles	24 hours	$182.50
D28XOB4-3/4	28XX OB Die 4-3/4OD	2 Whistles	24 hours	$263.70
D28XOB5-3/4	28XX OB Die 5-3/4OD	2 Whistles	5 days	$446.25

Part No.	Description	Locating Spot	Availability	Price
D28XSQ1-1/4	28XX Square Die 1-1/4OD	1 Whistle	24 hours	$70.40
D28XSQ2-1/8	28XX Square Die 2-1/8OD	1 Whistle	24 hours	$82.40
D28XSQ2-3/4	28XX SQARE Die 2-3/4OD	1 Whistle	24 hours	$128.50
D28XSQ3-3/4	28XX SQ Die 3-3/4 OD	1 Whistle	24 hours	$182.50
D28XSQ4-3/4	28XX Square Die 4-3/4OD	1 Whistle	24 hours	$263.70
D28XSQ5-3/4	28XX Square Die 5-3/4OD	1 Whistle	5 days	$446.25

Part No.	Description	Locating Spot	Availability	Price
D28XHX1-1/4	28XX HEX Die 1-1/4 OD	1 Whistle	24 hours	$70.40
D28XHX2-1/8	28XX HEX Die 2-1/8 OD	1 Whistle	24 hours	$82.40
D28XHX2-3/4	28XX HEX Die 2-3/4OD	1 Whistle	24 hours	$128.50
D28XHX3-3/4	28XX HEX Die 3-3/4OD	1 Whistle	24 hours	$182.50
D28XHX4-3/4	28XX HEX Die 4-3/4OD	1 Whistle	24 hours	$263.70
D28XHX5-3/4	28XX HEX Die 5-3/4OD	1 Whistle	5 days	$446.25

Part No.	Description	Locating Spot	Availability	Price
D28XRC1-1/4	28XX RECTANGLE Die 1-1/4OD	2 Whistles	24 hours	$70.40
D28XRC2-1/8	28XX RC Die 2-1/8OD	2 Whistles	24 hours	$82.40
D28XRC2-3/4	28XX RECTANGLE Die 2-3/4OD	2 Whistles	24 hours	$128.50
D28XRC3-3/4	28XX RECT Die 3-3/4OD	2 Whistles	24 hours	$182.50
D28XRC4-3/4	28XX RECTANGLE Die 4-3/4OD	2 Whistles	24 hours	$263.70
D28XRC5-3/4	28XX RECTANGLE Die 5-3/4OD	2 Whistles	5 days	$446.25

Part No.	Description	Availability	Price

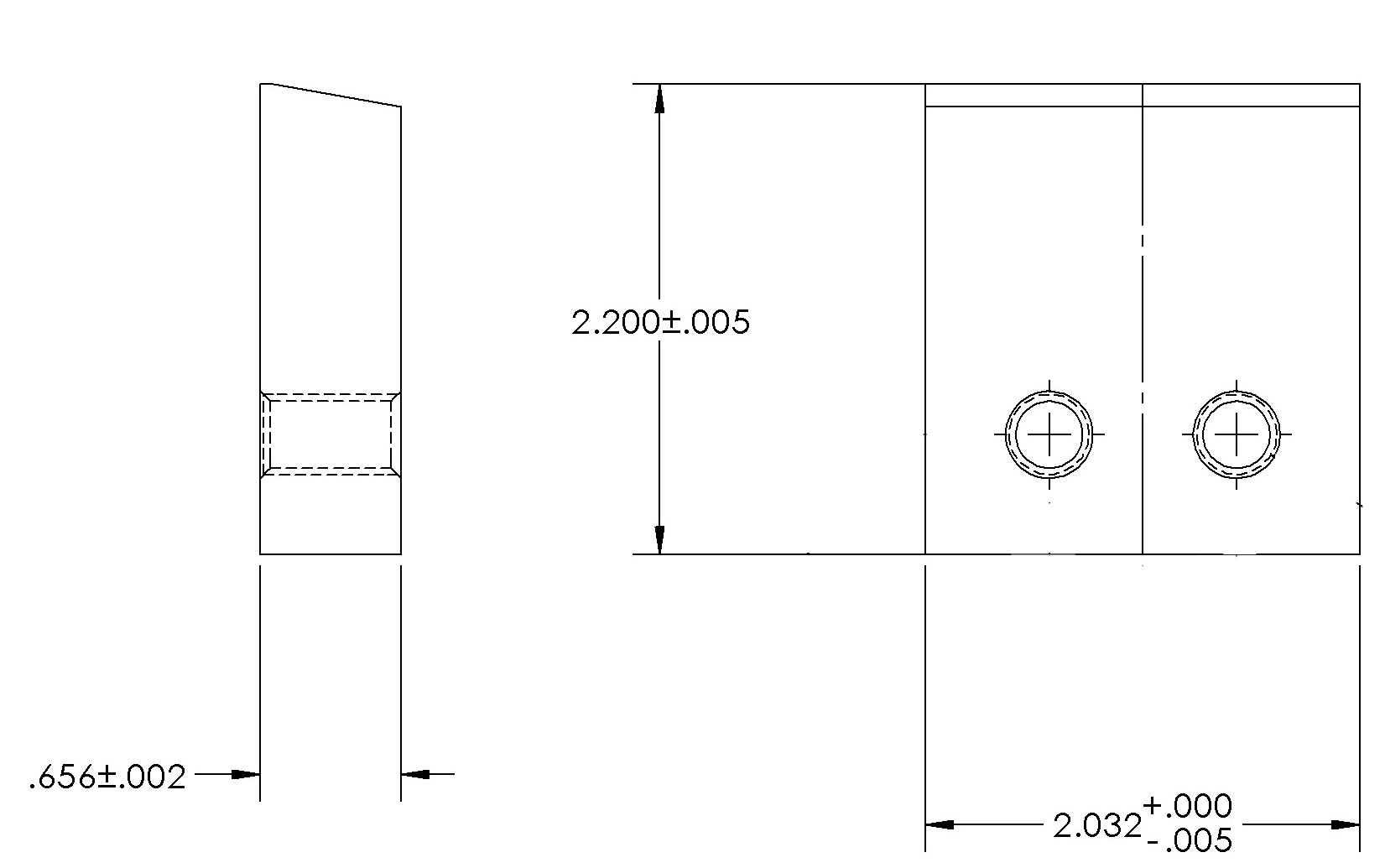

C22630	Side Channel Blade	15 days	Call for Quote

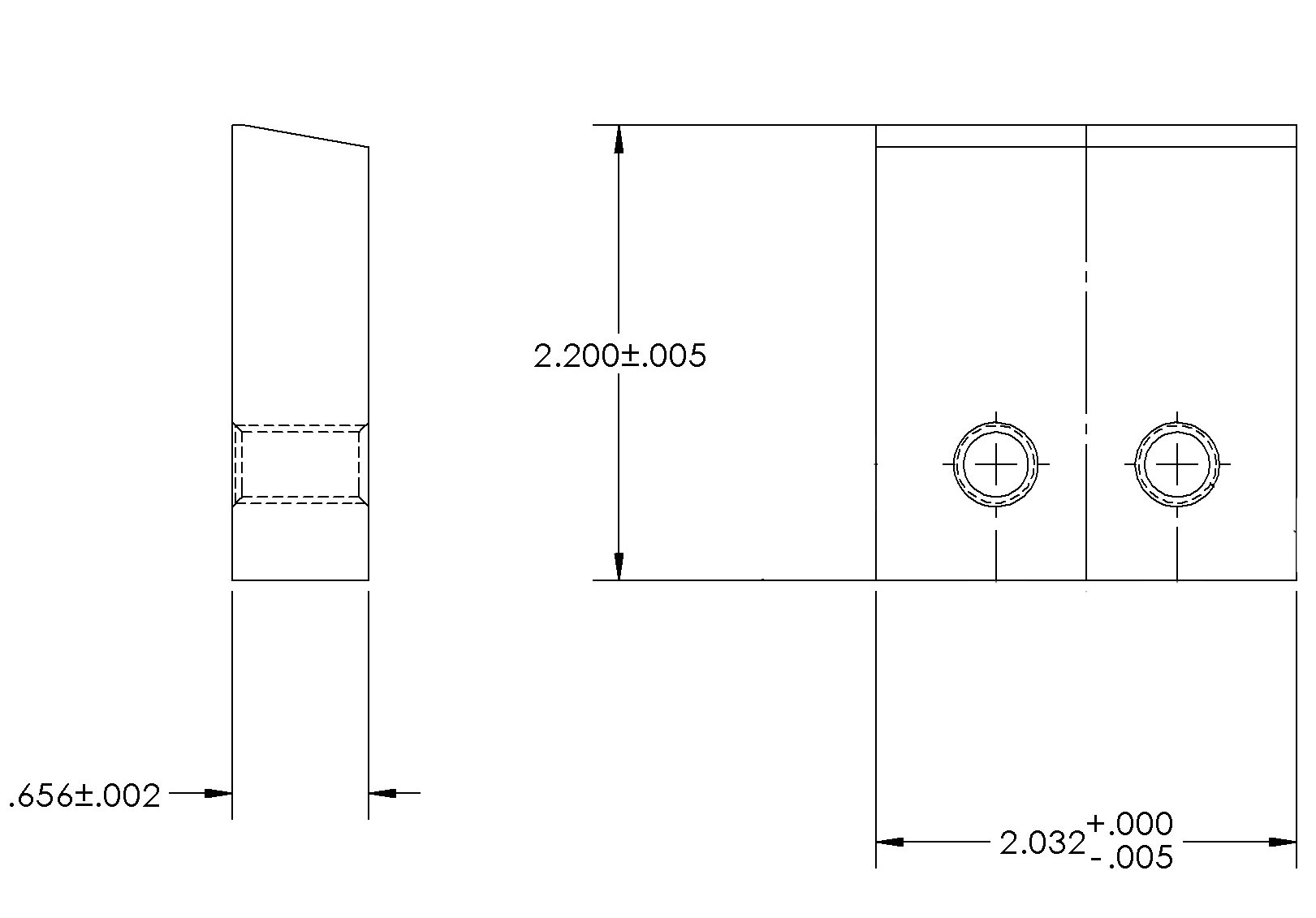

C22628	Upper Channel Blade	15 days	Call for Quote

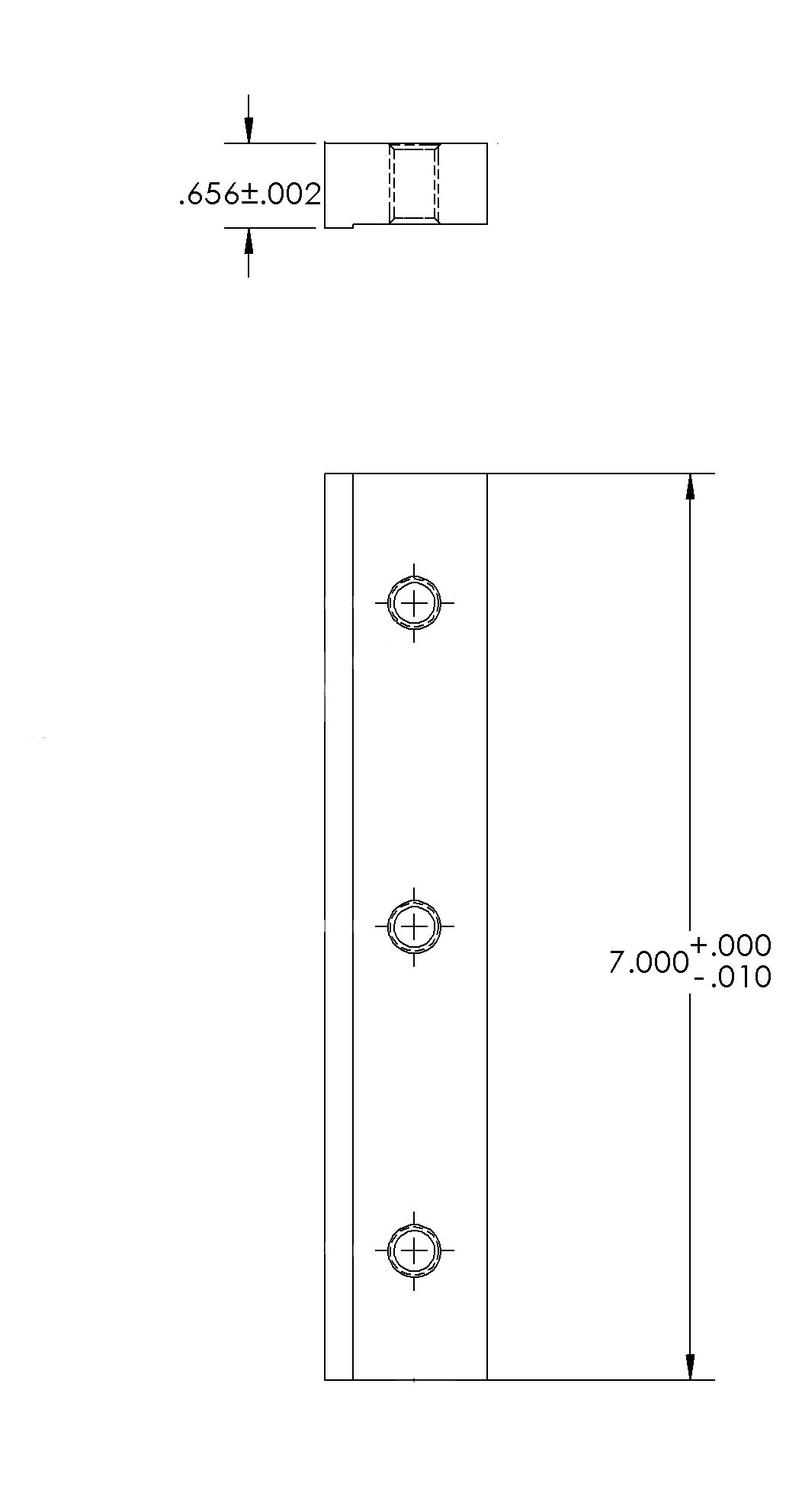

C22629	Lower Channel Blade	15 days	Call for Quote

Part No.	Description	Availability	Price

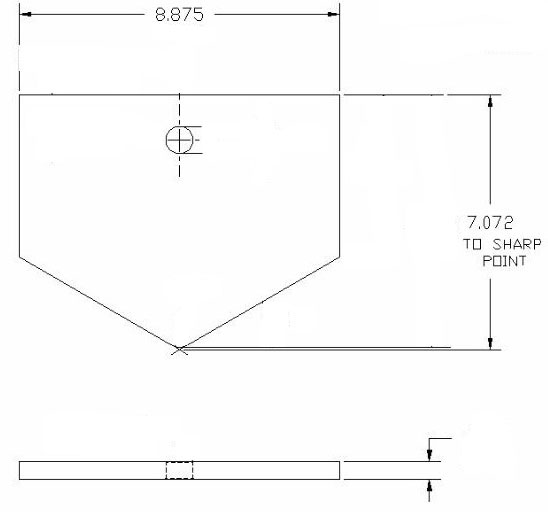

609-004	Home Plate	Same Day	$315.00

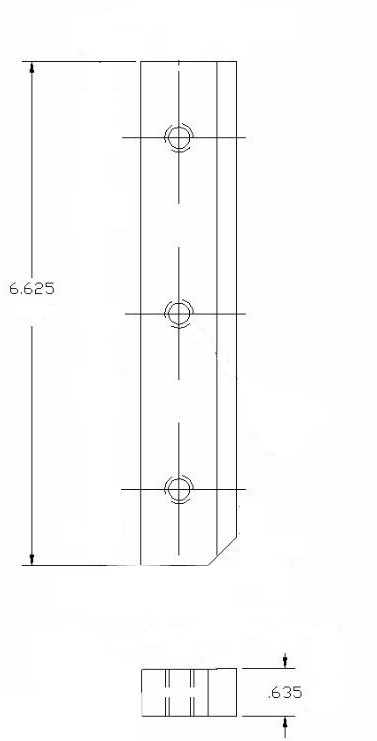

609-039	Right Insert	Same Day	$120.00

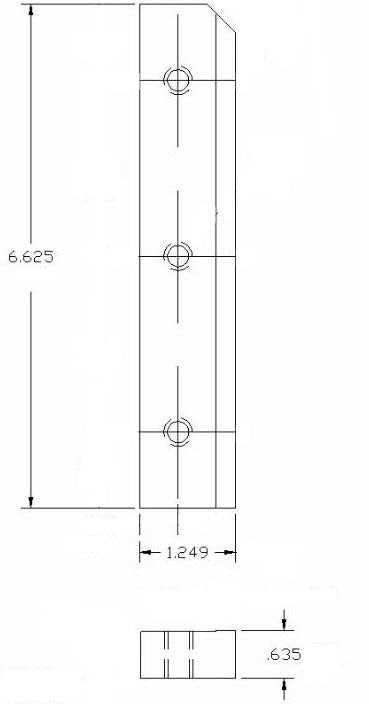

609-040	Left Insert	Same Day	$120.00
