Buffalo 1-1/2

Standard Punches & Dies

P66

Specifications

Head Diameter1-3/16"
Body Diameter1-1/16"
Overall Length2"

Equivalent Part Numbers

CPDF-664
APC6640

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No.	Size	Keyway	Description	Availability	Price
66404	1/8 (0.125)"	None	P66 Round Punch 1/8	Same Day	$17.60
66406	3/16 (0.188)"	None	P66 Round Punch 3/16	Same Day	$17.60
66407	7/32 (0.219)"	None	P66 Round Punch 7/32	Same Day	$17.60
66408	1/4 (0.250)"	None	P66 Round Punch 1/4	Same Day	$17.60
66409	9/32 (0.281)"	None	P66 Round Punch 9/32	Same Day	$17.60
66410	5/16 (0.313)"	None	P66 Round Punch 5/16	Same Day	$17.60
66412	3/8 (0.375)"	None	P66 Round Punch 3/8	Same Day	$17.60
66413	13/32 (0.406)"	None	P66 Round Punch 13/32	Same Day	$17.60
66414	7/16 (0.438)"	None	P66 Round Punch 7/16	Same Day	$17.60
66416	1/2 (0.500)"	None	P66 Round Punch 1/2	Same Day	$17.60
66418	9/16 (0.563)"	None	P66 Round Punch 9/16	Same Day	$17.60
66420	5/8 (0.625)"	None	P66 Round Punch 5/8	Same Day	$17.60
66421	21/32 (0.656)"	None	P66 Round Punch 21/32	Same Day	$17.60
66422	11/16 (0.688)"	None	P66 Round Punch 11/16	Same Day	$17.60
66423	23/32 (0.719)"	None	P66 Round Punch 23/32	Same Day	$17.60
66424	3/4 (0.750)"	None	P66 Round Punch 3/4	Same Day	$17.60
66425	25/32 (0.781)"	None	P66 Round Punch 25/32	Same Day	$17.60
66426	13/16 (0.813)"	None	P66 Round Punch 13/16	Same Day	$17.60
66427	27/32 (0.844)"	None	P66 Round Punch 27/32	Same Day	$17.60
66428	7/8 (0.875)"	None	P66 Round Punch 7/8	Same Day	$17.60
66429	29/32 (0.906)"	None	P66 Round Punch 29/32	Same Day	$17.60
66430	15/16 (0.938)"	None	P66 Round Punch 15/16	Same Day	$17.60
66432	1" (1.000)"	None	P66 Round Punch 1"	Same Day	$17.60
66434	1-1/16 (1.063)"	None	P66 Round Punch 1-1/16	Same Day	$17.60
66435	1-3/32 (1.094)"	None	P66 Round Punch 1-3/32	Same Day	$17.60
66436	1-1/8 (1.125)"	None	P66 Round Punch 1-1/8	Same Day	$17.60
P66RD		N/A	P66 Round Punch Any size not shown	24 hours	$30.80

Part No.	Size	Keyway	Description	Availability	Price
66491024	5/16 x 3/4 (0.313 x 0.750)"	None	P66 Oblong Punch 5/16 x 3/4	Same Day	$60.90
66491032	5/16 x 1 (0.313 x 1.000)"	None	P66 Oblong Punch 5/16 x 1	Same Day	$60.90
66491224	3/8 x 3/4 (0.375 x 0.750)"	None	P66 Oblong Punch 3/8 x 3/4	Same Day	$60.90
66491332	13/32 x 1 (0.406 x 1.000)"	None	P66 Oblong Punch 13/32 x 1	Same Day	$60.90
66491424	7/16 x 3/4 (0.438 x 0.750)"	None	P66 Oblong Punch 7/16 x 3/4	Same Day	$60.90
66491732	17/32 x 1 (0.531 x 1.000)"	None	P66 Oblong Punch 17/32 x 1	Same Day	$60.90
66491824	9/16 x 3/4 (0.563 x 0.750)"	None	P66 Oblong Punch 9/16 x 3/4	Same Day	$60.90
66491832	9/16 x 1 (0.563 x 1.000)"	None	P66 Oblong Punch 9/16 x 1	Same Day	$60.90
P66OB			P66 Oblong Punch Any size not shown	24 hours	$80.80

Part No.	Size	Keyway	Description	Availability	Price
664812	3/8 (0.375)"	1/4 x 1/8	P66 Square Punch 3/8 With 1/4 x 1/8 Keyway	Same Day	$60.90
664814	7/16 (0.438)"	1/4 x 1/8	P66 Square Punch 7/16 With 1/4 x 1/8 Keyway	Same Day	$60.90
664817	17/32 (0.531)"	1/4 x 1/8	P66 Square Punch 17/32 With 1/4 x 1/8 Keyway	Same Day	$60.90
664818	9/16 (0.563)"	1/4 x 1/8	P66 Square Punch 9/16 With 1/4 x 1/8 Keyway	Same Day	$60.90
664820	5/8 (0.625)"	1/4 x 1/8	P66 Square Punch 5/8 With 1/4 x 1/8 Keyway	Same Day	$60.90
664825	25/32 (0.781)"	1/4 x 1/8	P66 Square Punch 25/32 With 1/4 x 1/8 Keyway	Same Day	$60.90
P66SQ			P66 Square Punch Any size not shown	24 hours	$80.80

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
P66HX			P66 Hex Punch Any size not shown	24 hours	$80.80

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
P66RC			P66 Rectangle Punch Any size not shown	24 hours	$80.80

D66

Specifications

Outside Diameter2-3/8"
Height1-1/4"

Equivalent Part Numbers

CPDF-202
APC6650
PWBA

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
D66RD		D66 Round Die in Any size not shown	None	24 hours	$44.60

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
D66OB		D66 Oblong Die in Any size not shown	None	24 hours	$87.90

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
D66SQ		D66 Square Die in Any size not shown	None	24 hours	$87.90

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
D66HX		D66 Hex Die in Any size not shown	None	24 hours	$87.90

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
D66RC		D66 Rectangle Die in Any size not shown	None	24 hours	$87.90

Parts & Accessories

Misc Accessories and Parts

Part No.	Description	Availability	Price

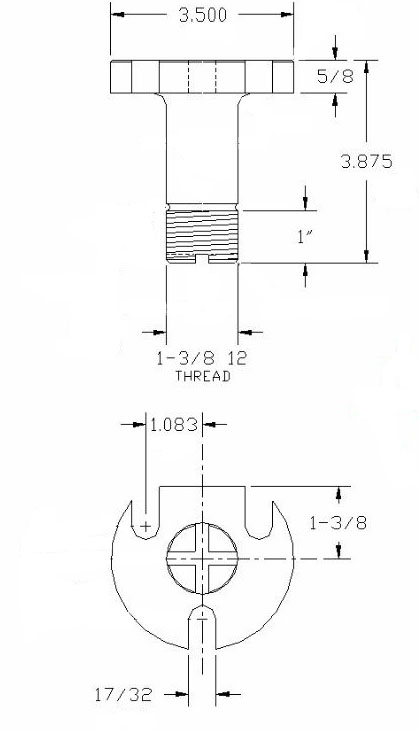

S90	Stem (Pre 1963)	Call	$406.35

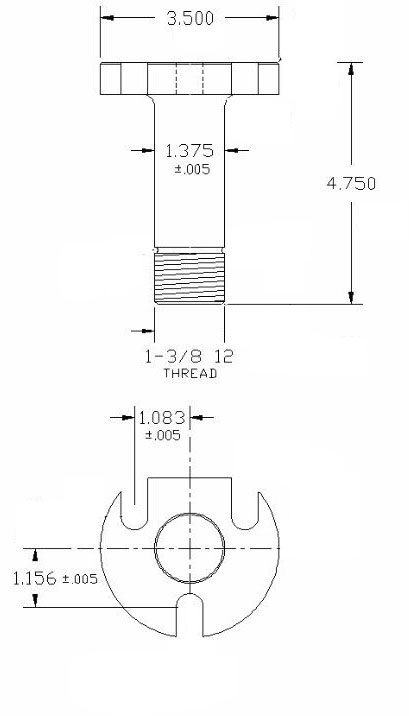

S4T	Stem (Post 1963)	Call	Call for Quote

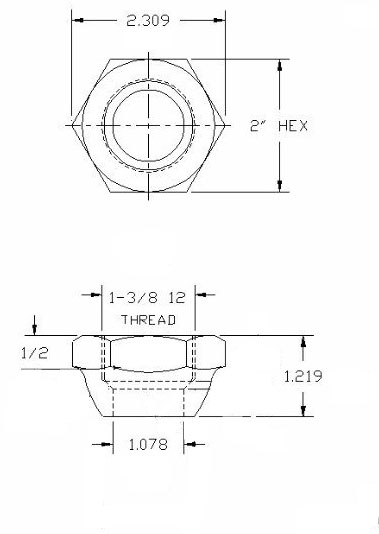

C7B	Coupling Nut	Call	Call for Quote
C17901	Special 'D' Barcutter Knife	15 days	Call for Quote
C17900	Special 'C' Barcutter Knife	15 days	Call for Quote

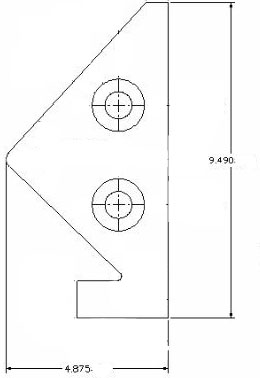

C17899	Special 'A' Barcutter Knife	15 days	Call for Quote

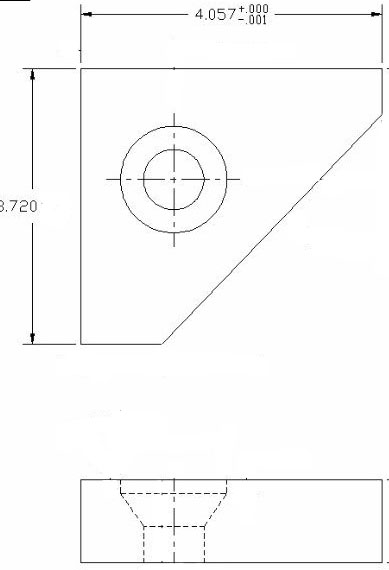

2K5A	Barcutter Knife 'A'	15 days	Call for Quote
2K4D	Barcutter Knife 'D' (Pre 1963 only)	15 days	Call for Quote

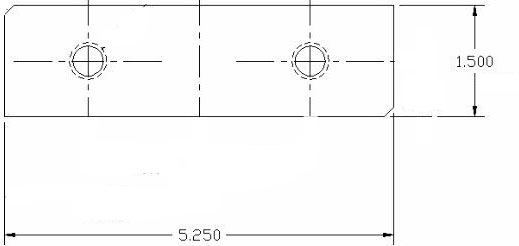

2K4E	Barcutter Knife 'E'	15 days	Call for Quote

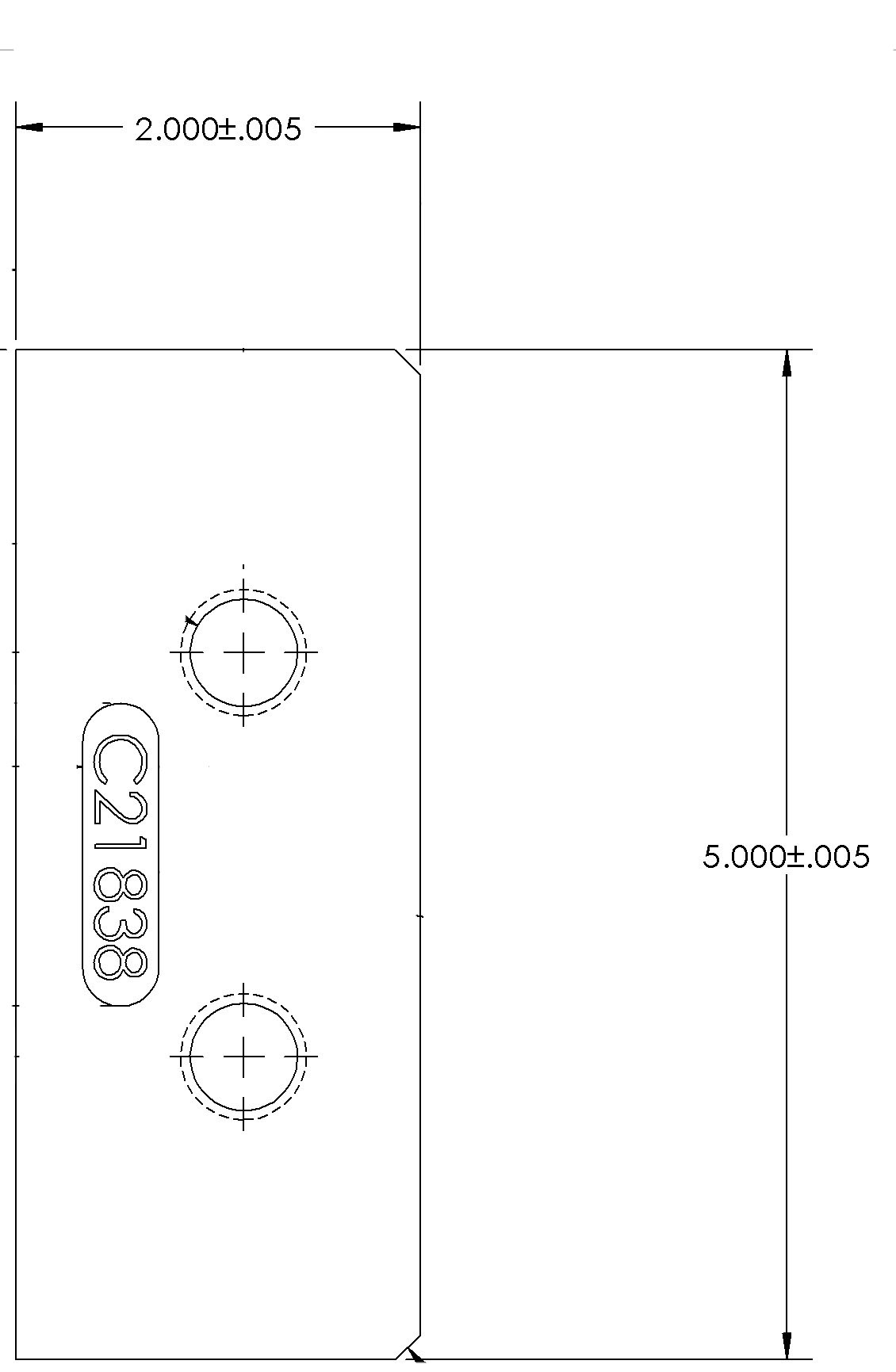

C21838	2K4E Modified Bar Cutter Knife	15 days	Call for Quote

Flat Shear Blades

Part No.	Description	Availability	Price

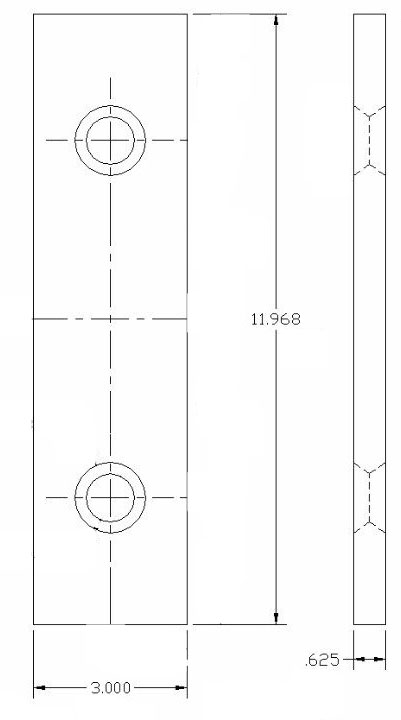

2SB3	Plain Blade	15 days	Call for Quote

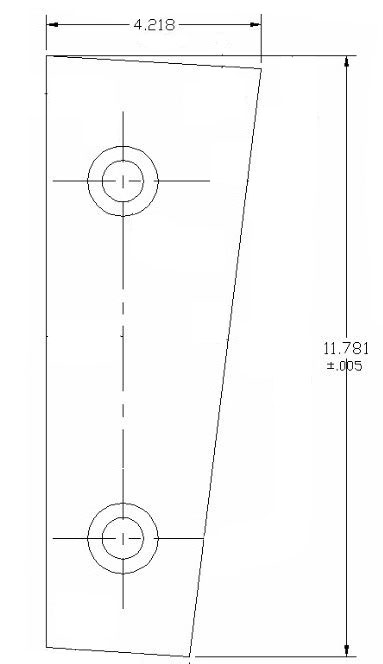

2SB9	Special Upper Blade (Pre 1963)	15 days	Call for Quote

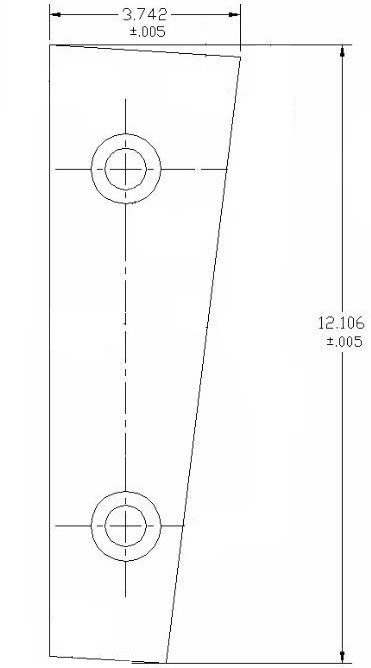

2SB4	Special Upper Blade (After 1963)	15 days	Call for Quote

Coper Notcher Shear Blades

Part No.	Description	Availability	Price

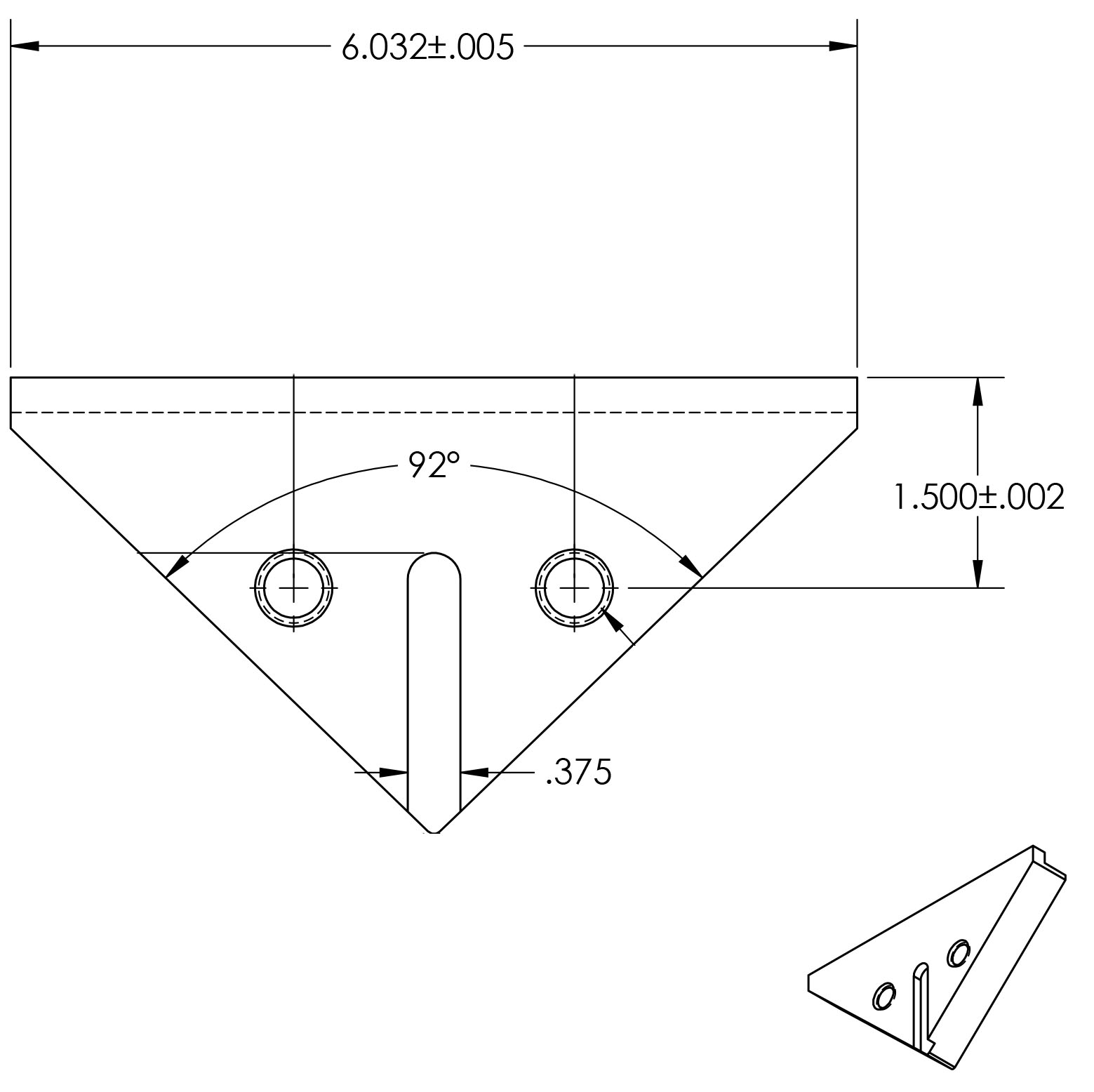

1-2NP1	Notcher Punch	Call	Call for Quote

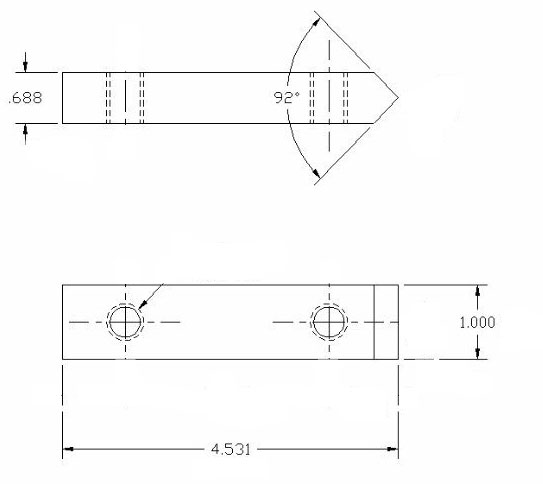

1-2ND0	Notcher Die (2 req)	Call	Call for Quote

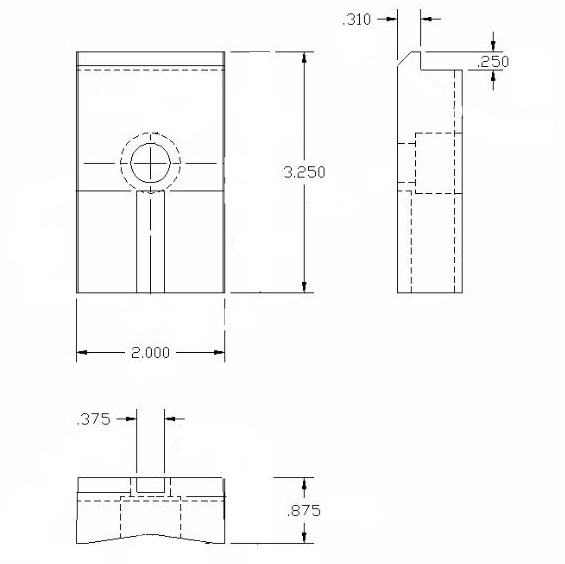

1-2CP3	Coper Punch (Pre 1963)	Call	Call for Quote

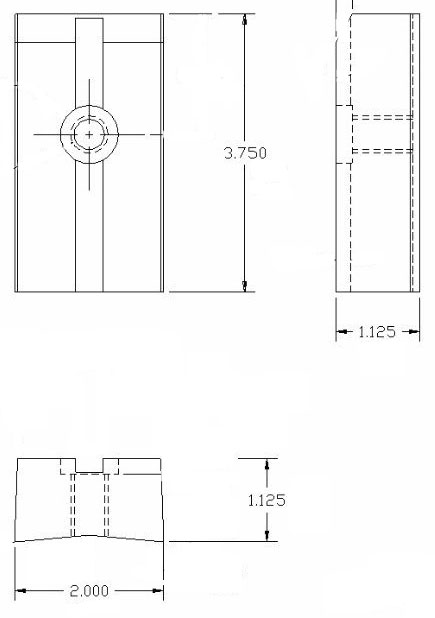

1-2CP4	Coper Punch (Post 1963)	Call	Call for Quote

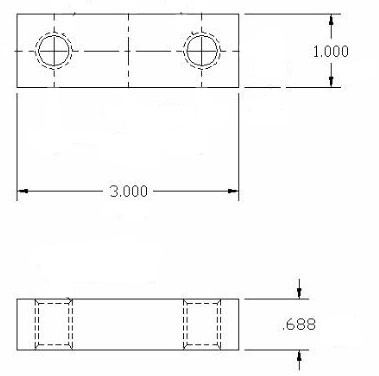

1-2CDB	Coper Die (2 req. Pre 1963)	Call	Call for Quote

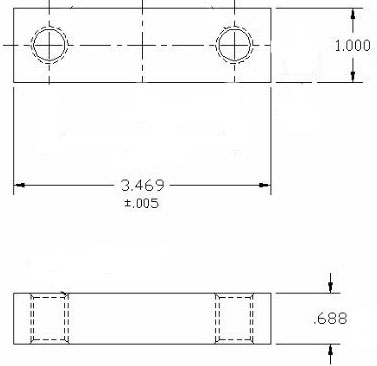

1-2CD1	Coper Die (2 req. Post 1963)	Call	Call for Quote

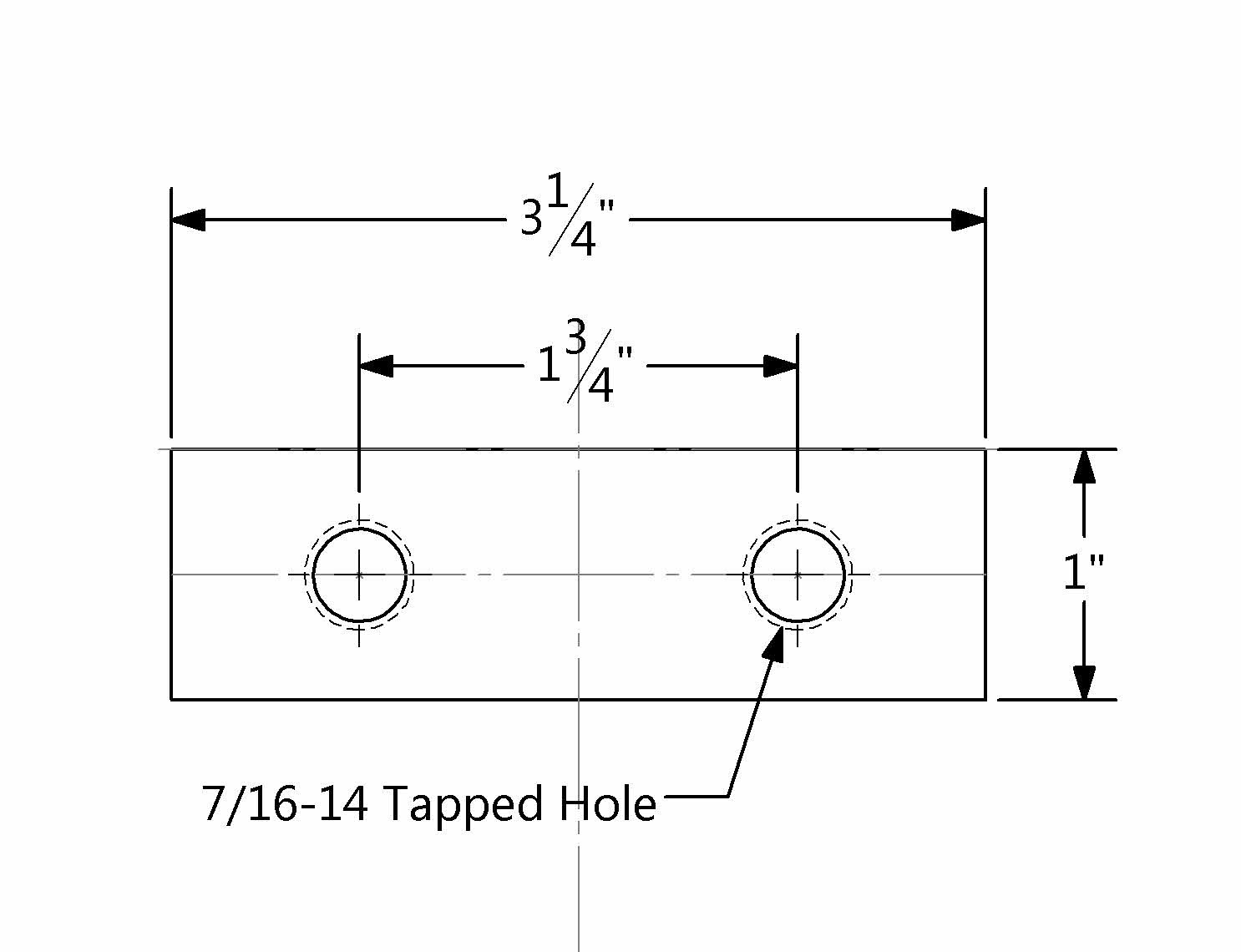

1-2CD3	Coper Die (3 req. Post 1963)	Call	Call for Quote
