Special Shapes

Special Shapes

We can create special shaped punches and dies to fit any custom punching application.

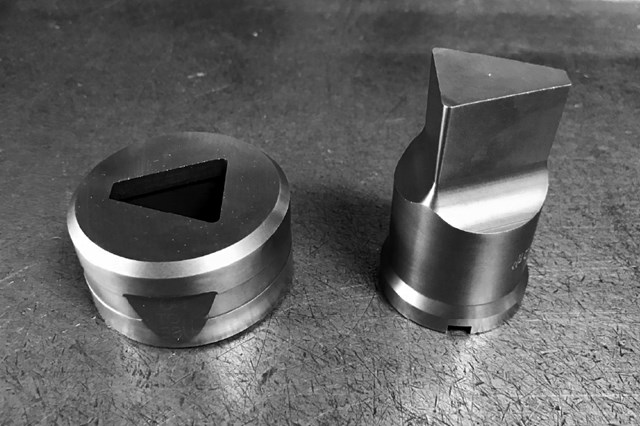

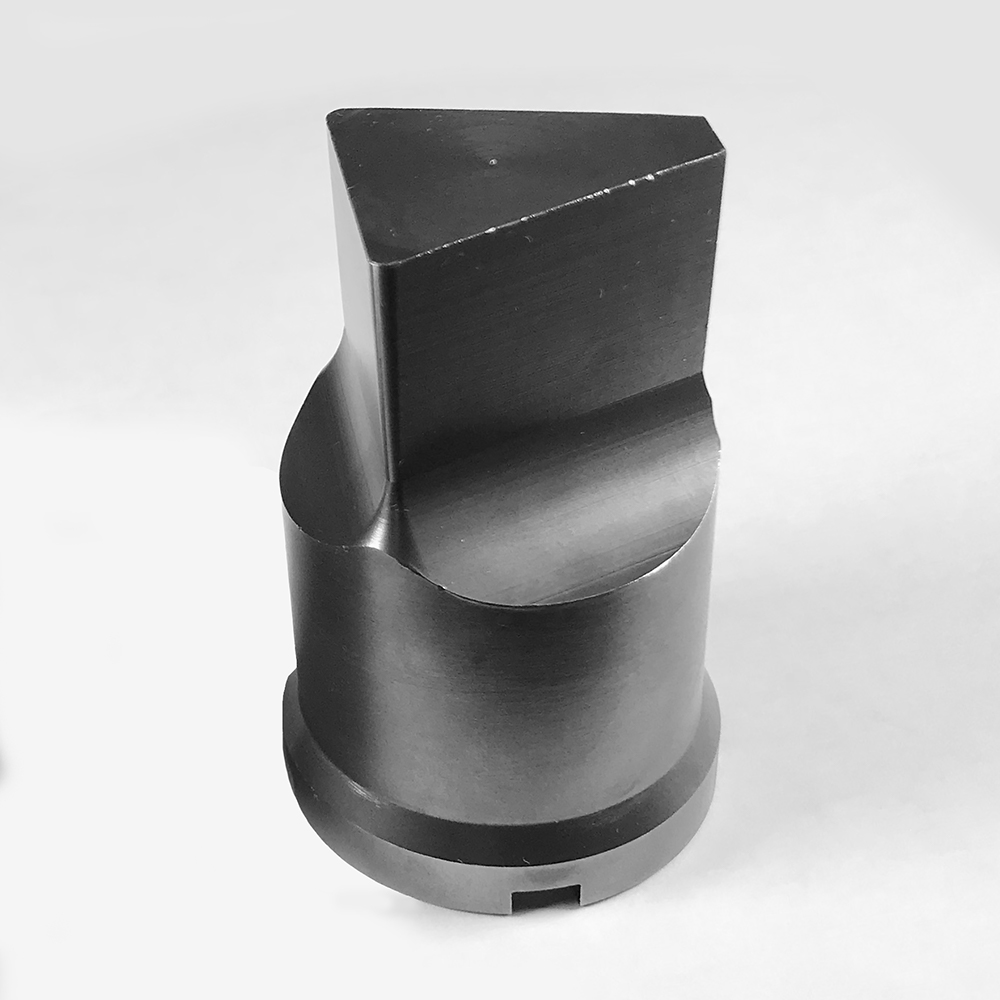

Trapezoid Ironworker Punch

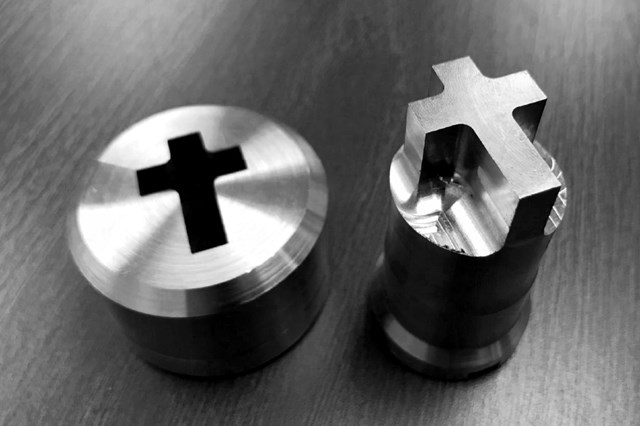

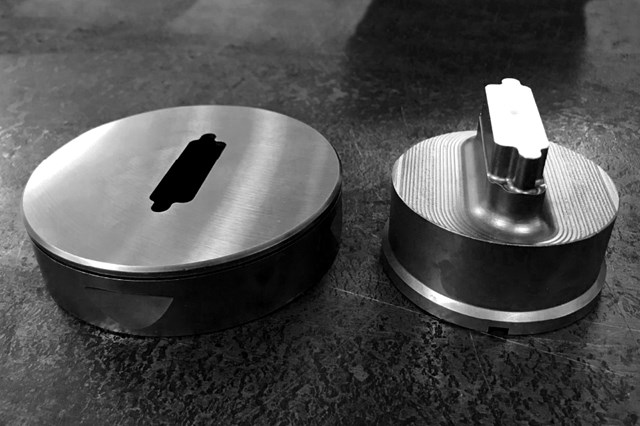

Cleveland Steel Tool can manufacture any style of punch and die in different shapes. If you require a shape that is not shown, send us a sketch or sample for a quote.

Request a Quote

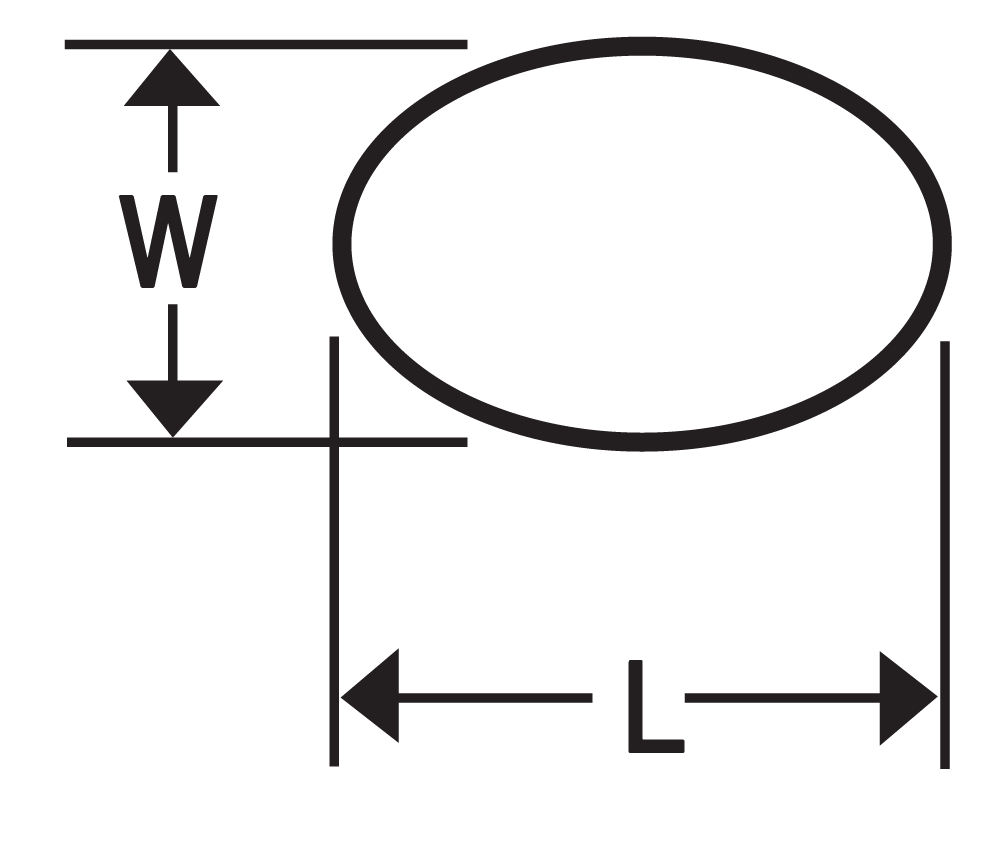

J-Oval Shaped Ironworker Punch

J-Oval (Elipse)

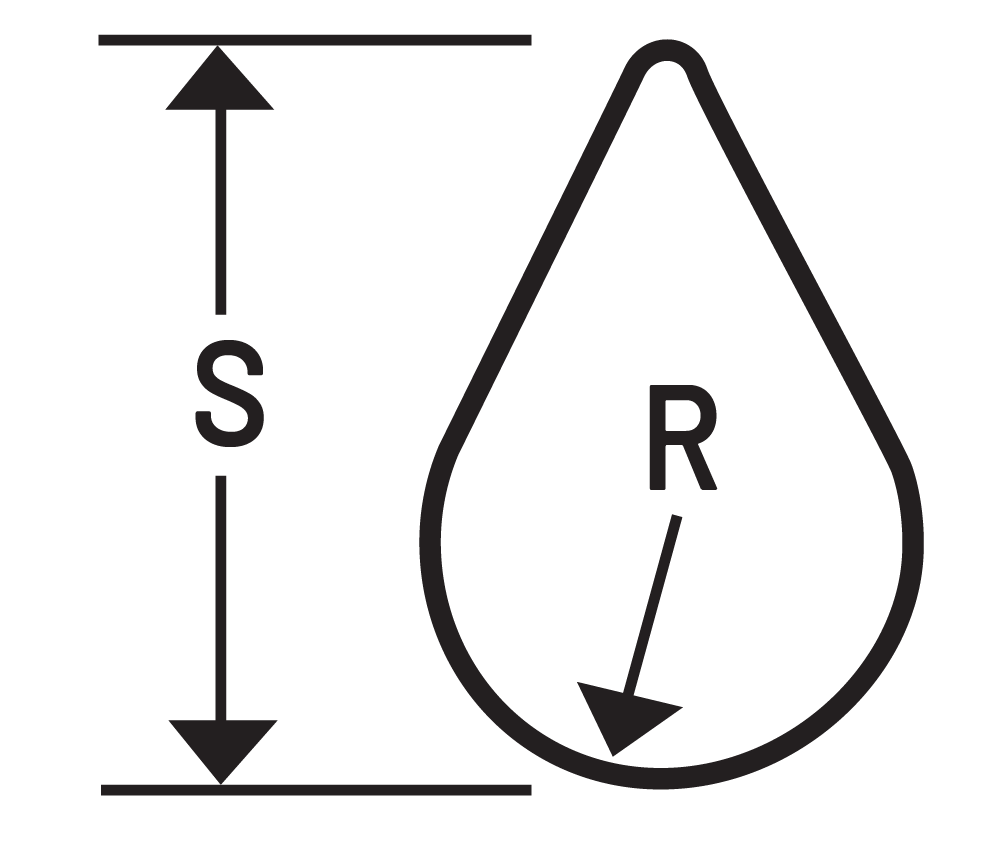

T-Teardrop Shaped Ironworker Punch

T-Teardrop

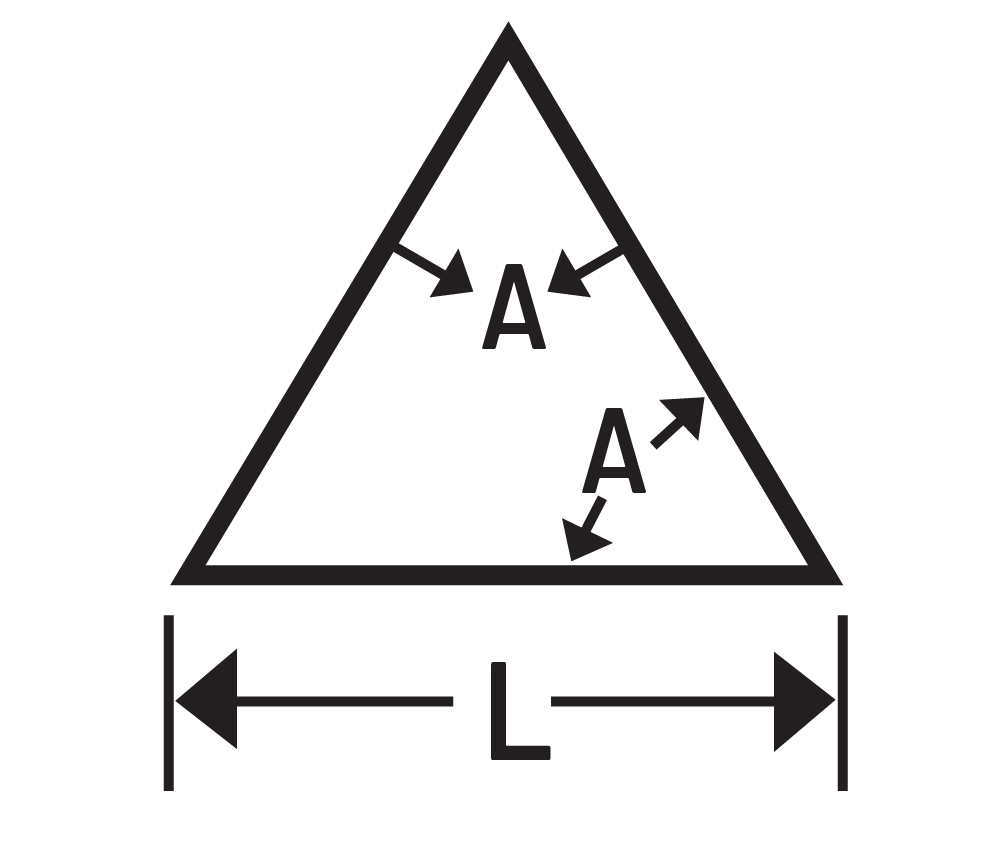

T-Triangle Shaped Ironworker Punch

G-Triangle

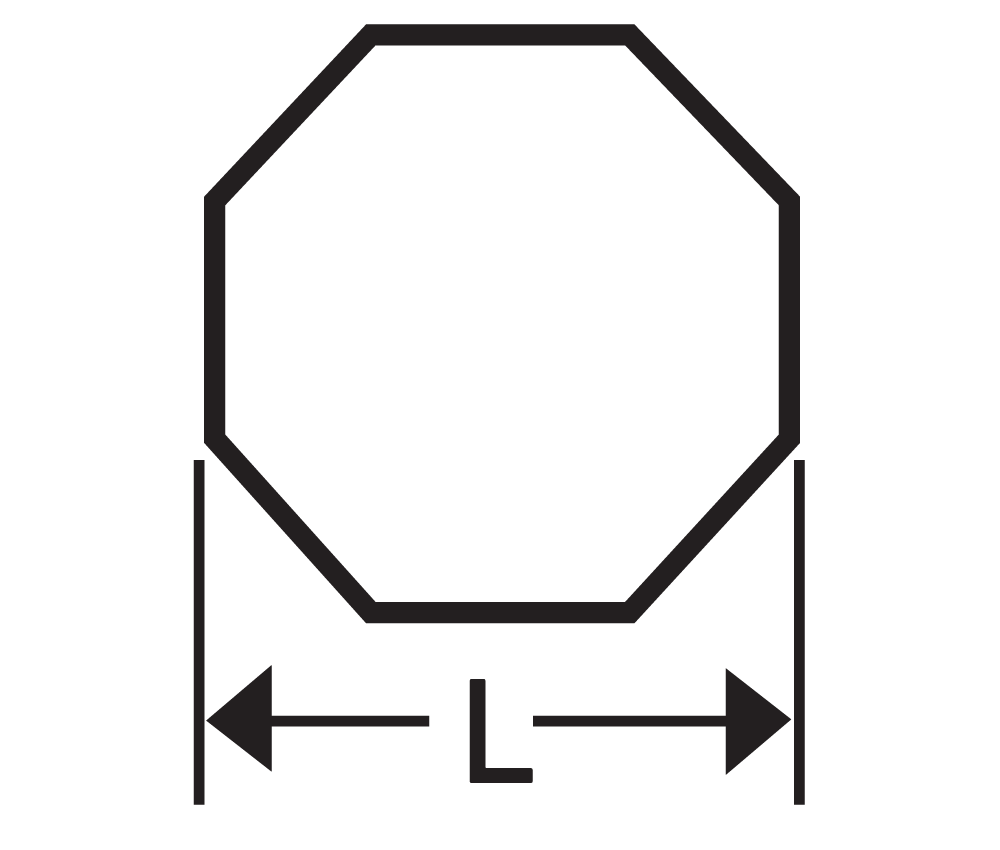

M-Octogan Shaped Ironworker Punch

M-Octogan

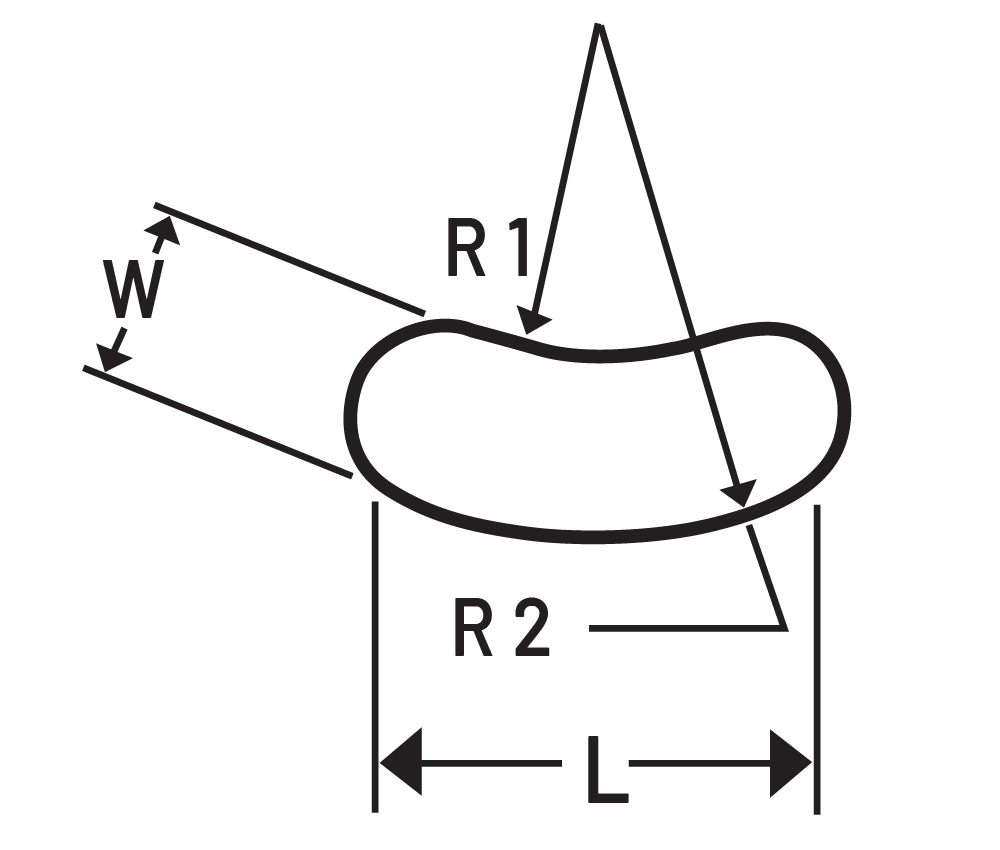

OO-Curved Oblong Shaped Ironworker Punch

OO-Curved Oblong

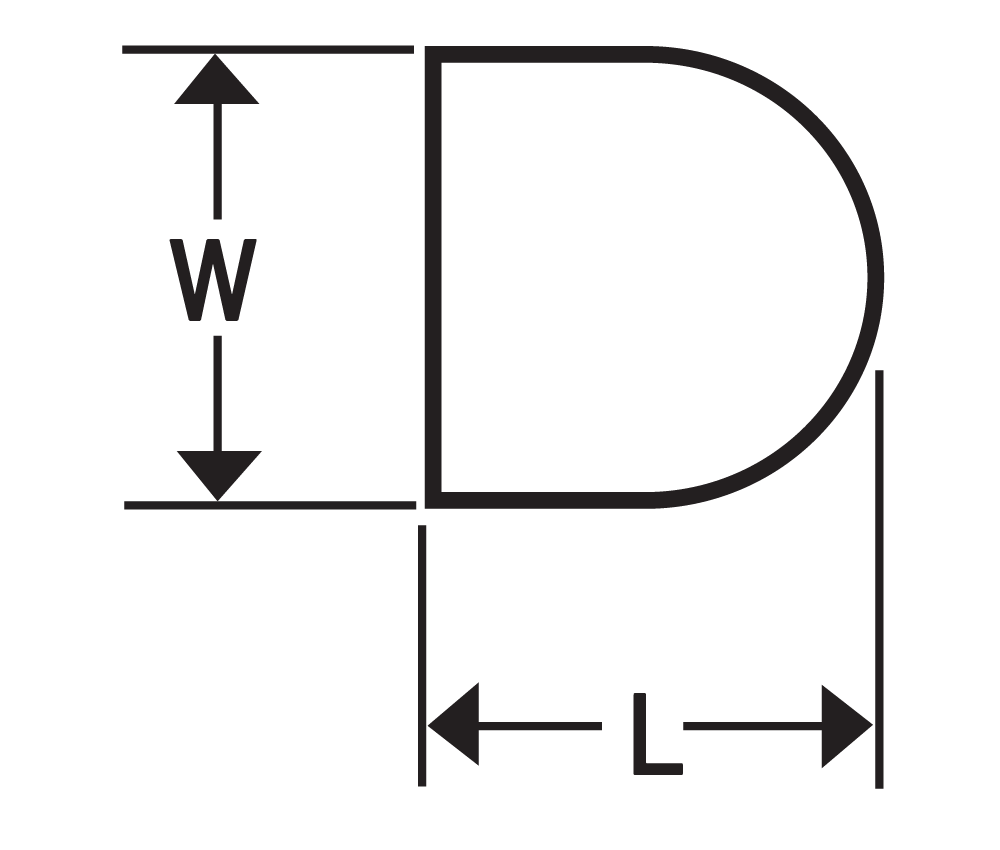

D-Half Oblong Shaped Ironworker Punch

D-Half Oblong

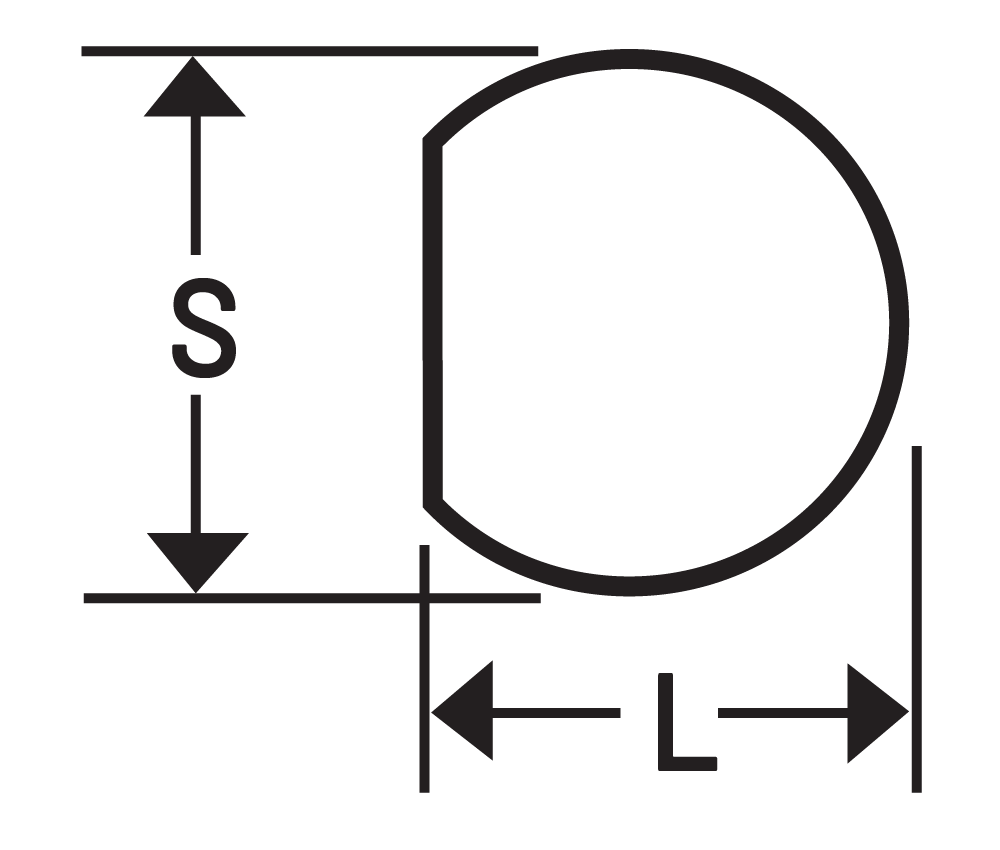

Q-Flatted Round Shaped Ironworker Punch

Q-Flatted Round

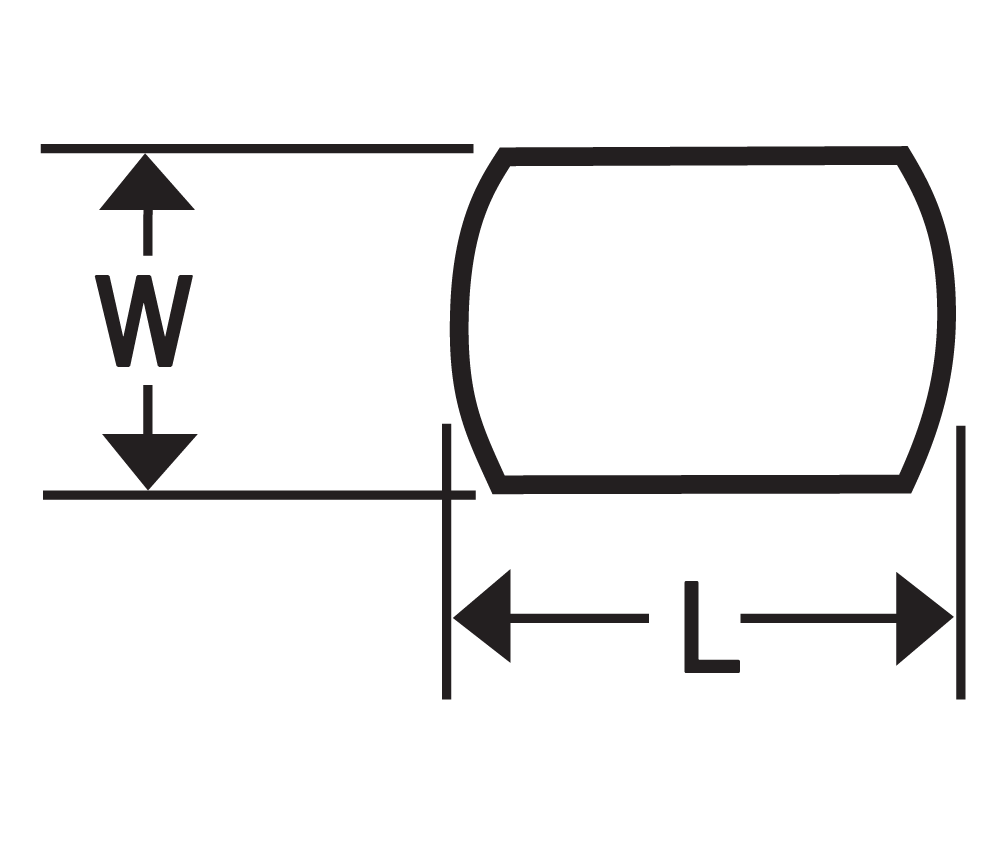

P-Double Flatted Round Shaped Ironworker Punch

P-Double Flatted Round

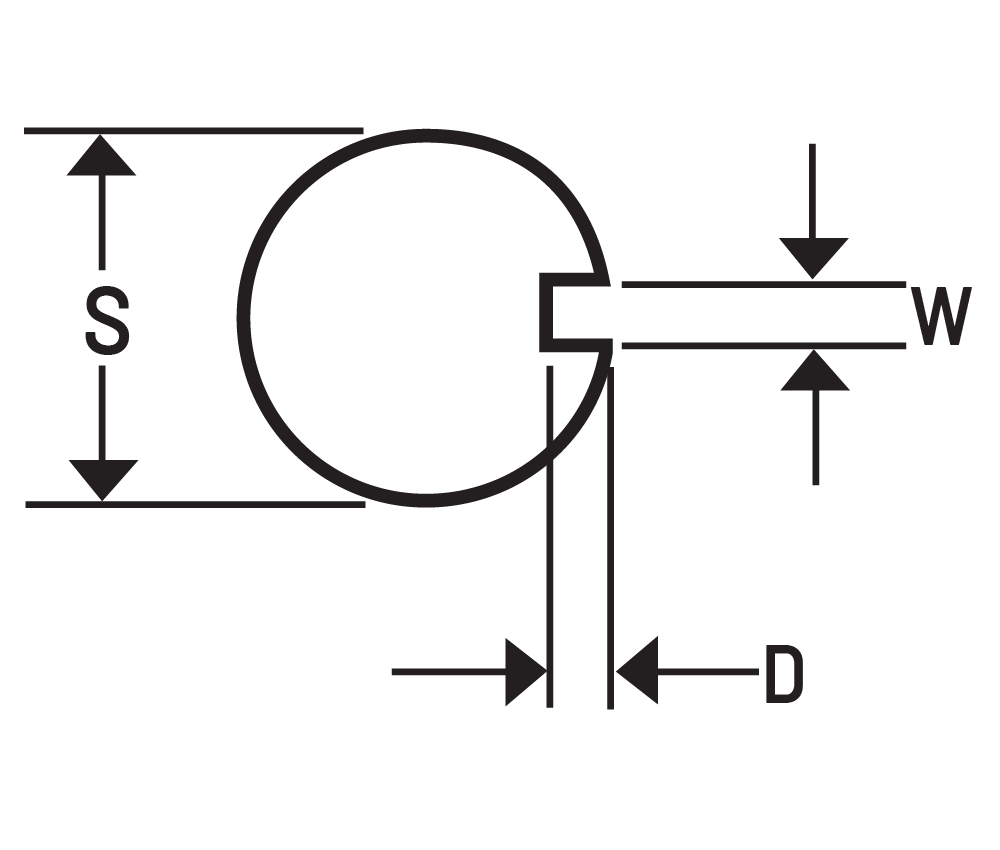

C-Knockout Shaped Ironworker Punch

C-Knockout

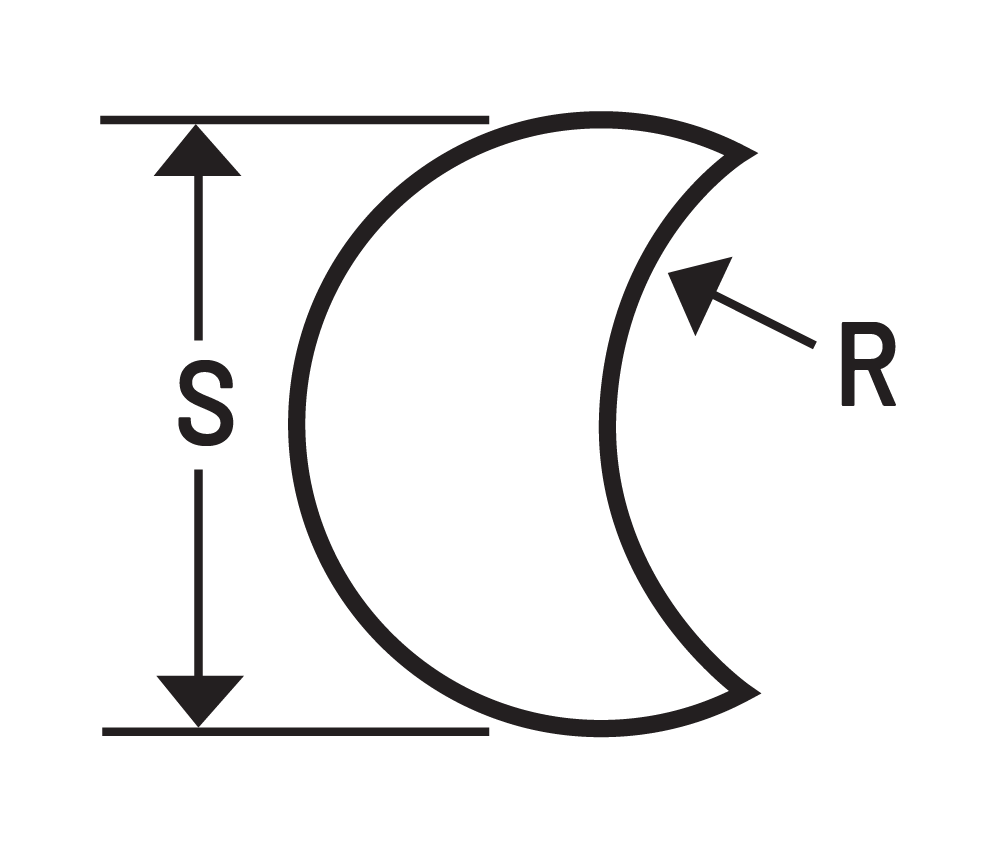

R-Corner Round Shaped Ironworker Punch

R-Corner Round

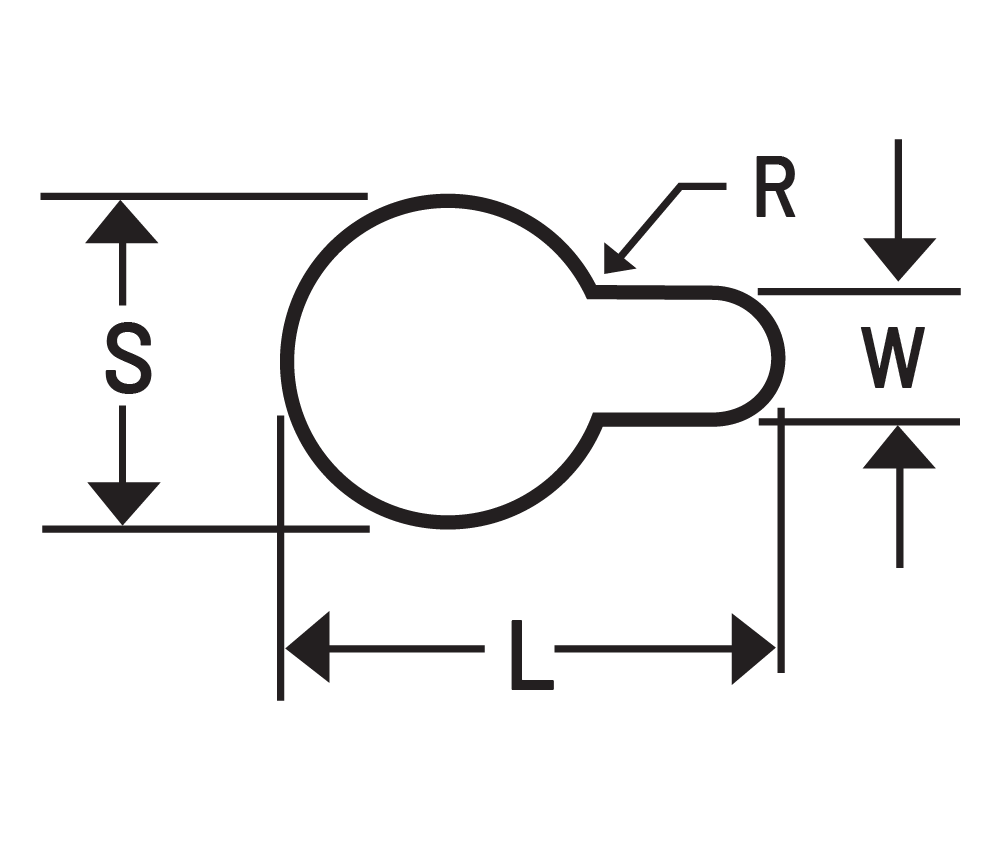

BR-Single Key Radius End Shaped Ironworker Punch

BR-Single Key
Radius End

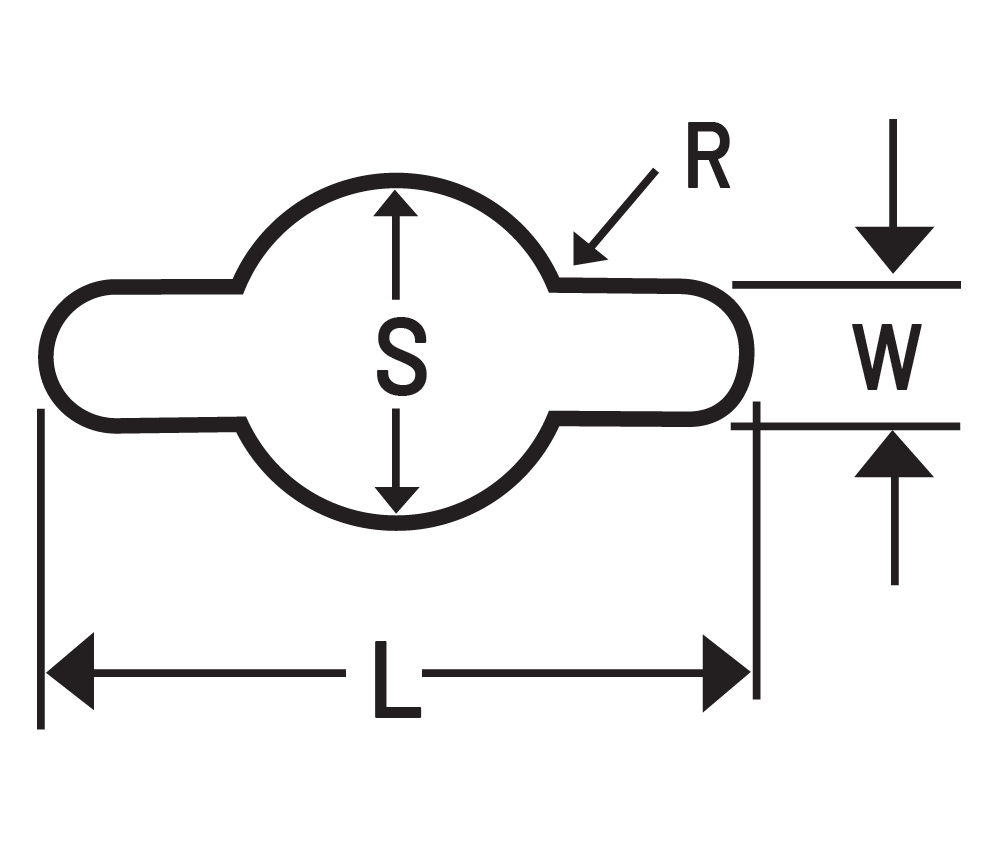

BD-Double Key Radius End Shaped Ironworker Punch

BD-Double Key
Radius Ends

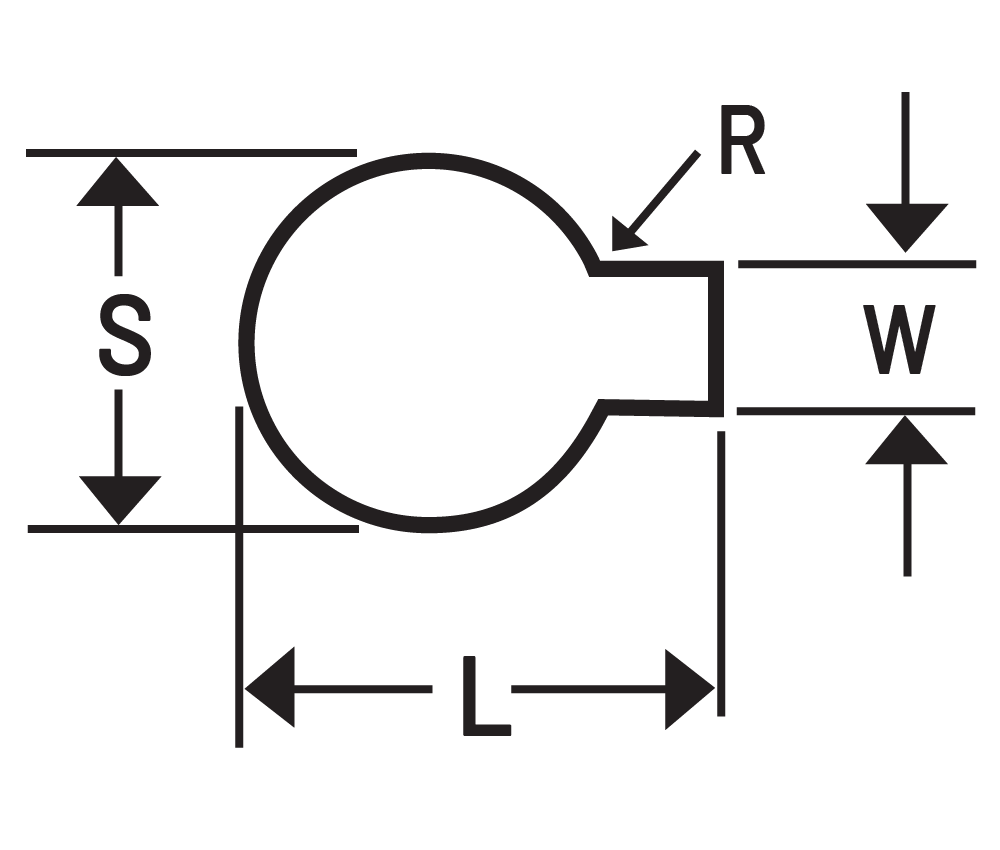

B-Single Key Shaped Ironworker Punch

B-Single Key

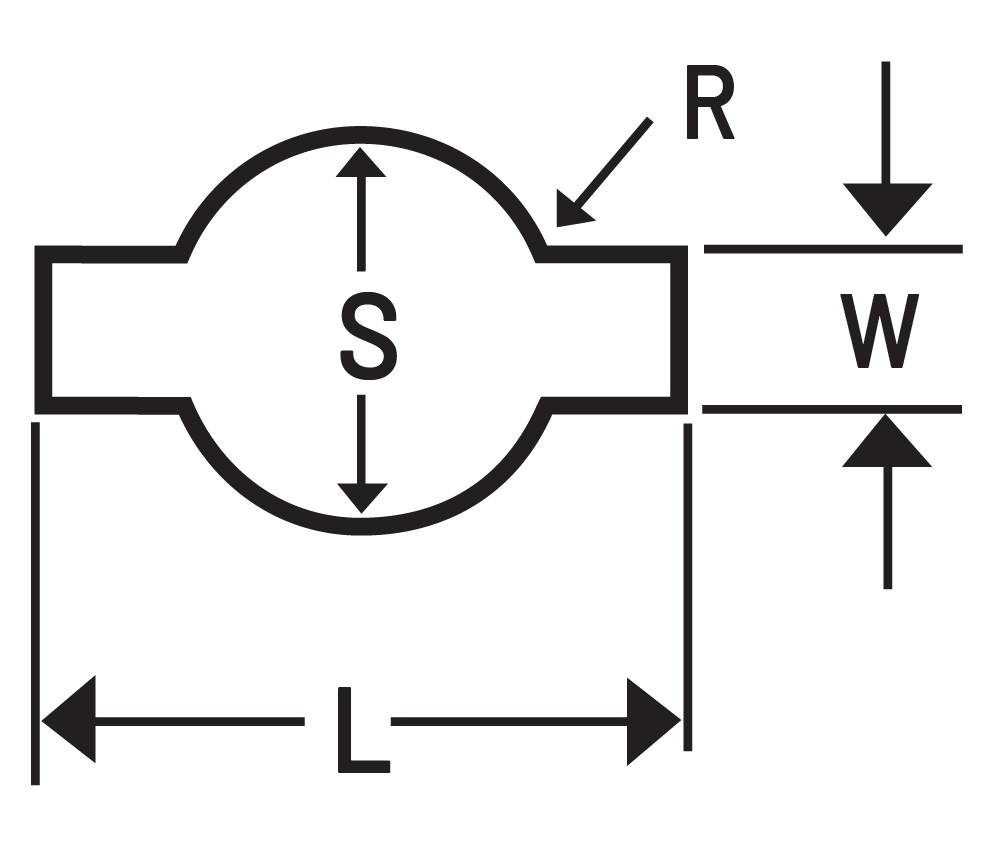

A-Double Key Shaped Ironworker Punch

A-Double Key

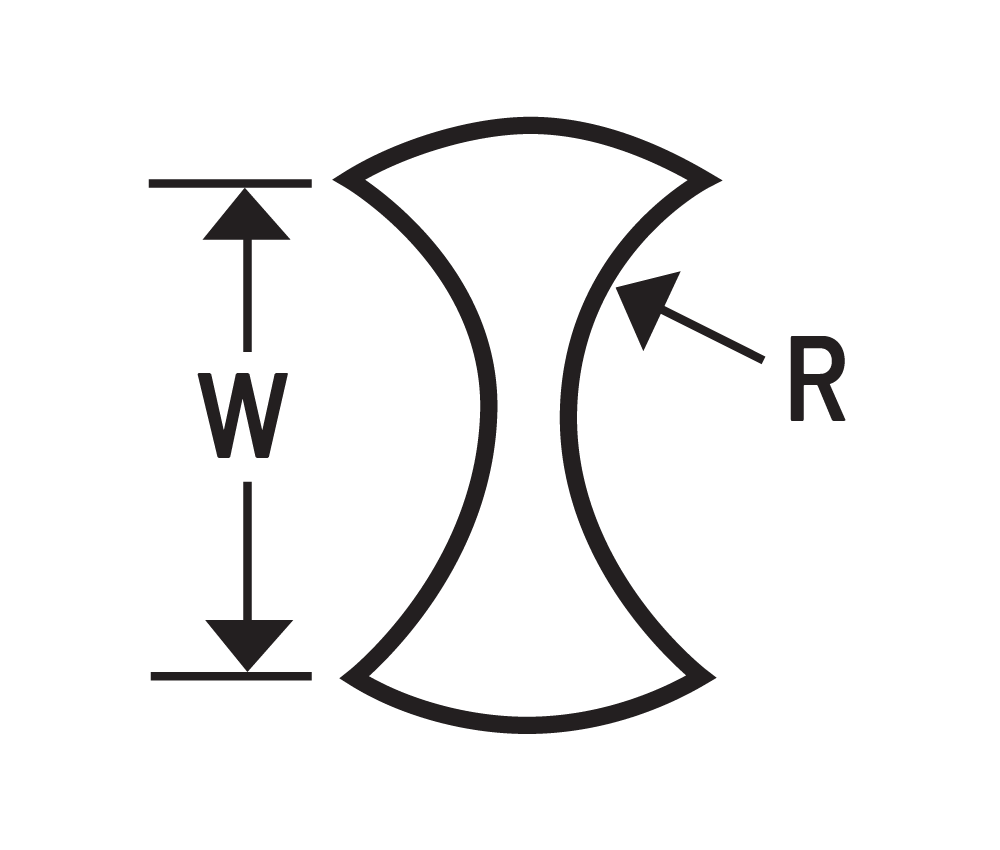

E-Lattice Bar Trim and Part Shaped Ironworker Punch

E-Lattice Bar
Trim and Part
